Aircraft Hangar Door Systems: Types, Costs, and Structural Impact

The door is the most expensive, most complex, and most structurally consequential component of any aircraft hangar. It is also the component that defines the building’s functionality—if the door cannot open wide enough, tall enough, or fast enough to serve the aircraft inside, the entire facility fails to meet its purpose. Aircraft hangar door systems come in several distinct types, each with different structural requirements, cost profiles, and operational characteristics that must be understood before the building design is finalized.

For developers, airport authorities, and private owners planning an aircraft hangar, choosing the right door system is not a decision that can be deferred until after the steel is ordered. The door type directly influences the building’s primary frame design, foundation requirements, header beam sizing, and wind load engineering. This guide covers the major types of hangar door systems, their cost ranges, and how each type affects the structural design of the building that supports it.

Table of Contents

Intro

Types of Aircraft Hangar Door Systems

How Door Systems Affect Structural Design

Cost Comparison Across Door Types

Selecting the Right Door for Your Hangar Project

Wind Load, Codes, and Door Engineering

Conclusion

Frequently Asked Questions

Aircraft hangar door systems fall into four primary categories, each engineered for different span widths, operational speeds, and structural conditions. Understanding the differences is essential for matching the door to the building and the aircraft it will serve.

Bifold doors are among the most common systems for general aviation hangars. They consist of horizontal panels that fold upward and outward, lifting via cables or straps driven by an electric motor. According to Schweiss Doors, bifold doors are a popular choice for snow-country applications because the panels initially fold inward and upward, clearing any snow or ice accumulation at the base of the door before swinging outward. Bifold systems can span openings up to 250 feet or more, making them suitable for corporate jet hangars and large maintenance facilities. When fully open, they create a canopy that provides shade and rain protection in front of the door opening.

Hydraulic doors operate on a simpler mechanical principle. The door panel swings outward as a single rigid unit, raised by hydraulic cylinders mounted at each end. Hydraulic doors are significantly faster than bifold systems—often three times faster in opening and closing speed—which makes them attractive for facilities with high traffic volume or security requirements. They also provide a clean, flush exterior appearance when closed. However, hydraulic doors require clear space in front of the building equal to the door height for the panel to swing open, which can be a constraint on tight sites.

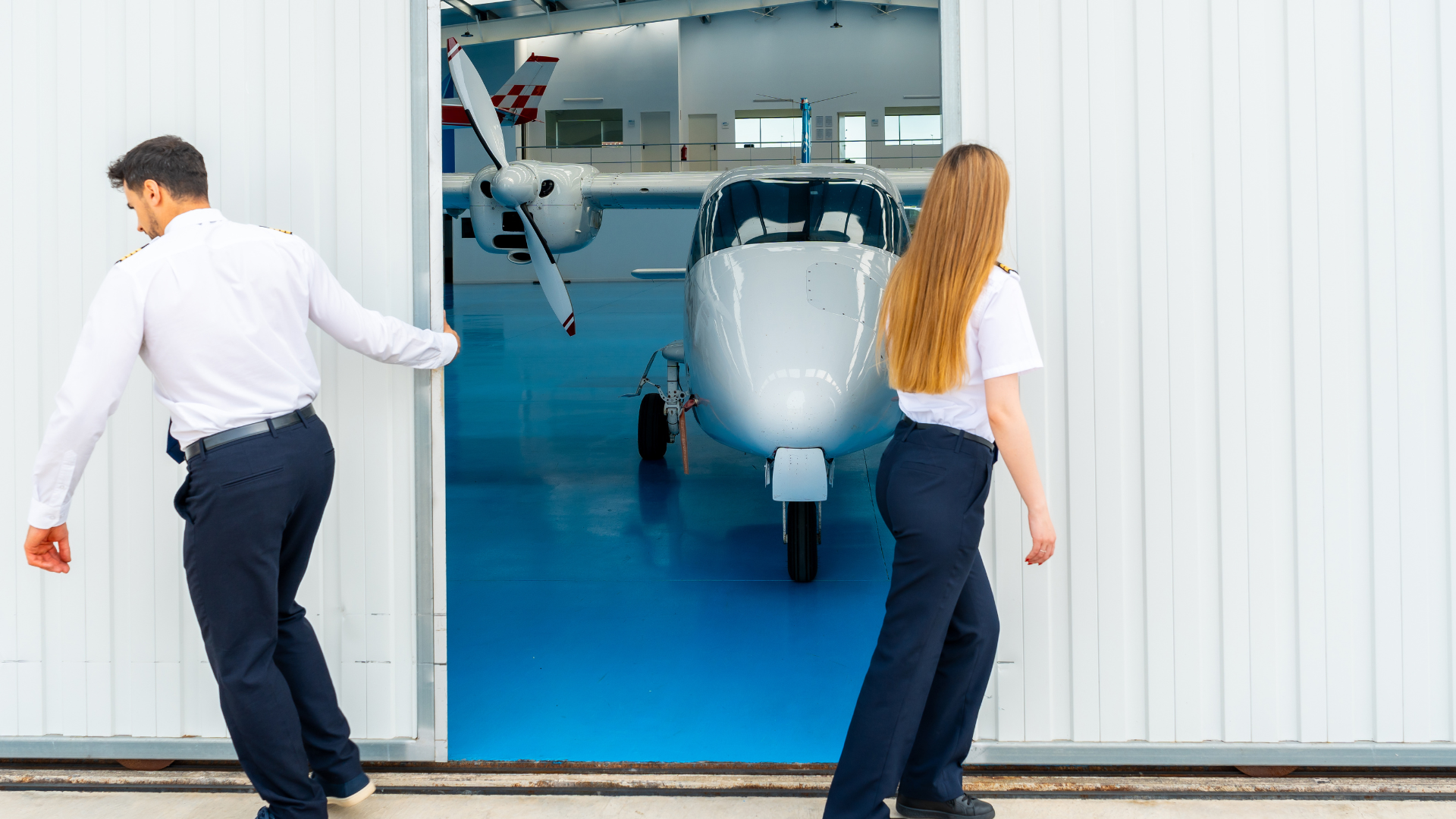

Sliding doors move horizontally on tracks mounted at the base and top of the opening. They are available in bottom-rolling and top-hung configurations and are often used for very wide openings where bifold or hydraulic doors would be impractical or prohibitively expensive. Sliding door systems can cover openings of 300 feet or more by stacking multiple panels that slide and nest against the building’s sidewalls. According to Well Bilt Doors, sliding doors are the most common choice for large commercial and military hangars because they impose the least structural demand on the building’s header system, since the door panels are supported by the track and wheels rather than by the building frame above the opening.

Vertical lift doors raise straight up into the building’s interior, requiring significant overhead clearance above the door opening. They are most commonly used in smaller hangars where the aircraft wingspan does not require the full building width to be open. Vertical lift doors are compact and fast but are limited in maximum width compared to bifold or sliding systems.

The aircraft hangar door system is not an accessory bolted onto a finished building—it is an integral part of the structural engineering. The door type determines the loads that the building frame must carry at the door opening, and those loads vary dramatically between system types.

Bifold and hydraulic doors impose significant dead loads and wind loads on the building’s header beam and endwall columns. When a bifold door is in the open position, the full weight of the door panels hangs from the header beam, creating a concentrated load at the top of the opening that must be transferred to the building columns and down to the foundations. A large bifold door system for a 200-foot-wide hangar can weigh 30,000 to 50,000 pounds or more, and the header beam must be sized to carry that load plus wind loads without excessive deflection. Hydraulic doors create similar header loads when closed and add lateral thrust loads at the hinge points when opening or closing.

Sliding doors, by contrast, transfer their weight to the ground through bottom-mounted wheels or to a top track supported by the building’s sidewall framing. This significantly reduces the load on the door header, which only needs to resist wind pressure and provide a weather seal rather than supporting the full weight of the door panels. For very wide openings, this structural advantage makes sliding doors the only practical option without resorting to extraordinarily heavy and expensive header systems. Understanding these structural implications is a critical part of the steel building design process for any hangar project.

Hangar door costs vary significantly based on door type, span width, height, wind load rating, and the level of automation and weathersealing required. According to Well Bilt Doors’ pricing analysis, a sliding hangar door for a T-hangar or small corporate hangar can range from $15,000 to $50,000 for the door system alone, while larger commercial sliding systems for openings exceeding 100 feet can cost $100,000 to $300,000 or more depending on wind load requirements and automation features.

Bifold doors for general aviation hangars in the 40-to-60-foot span range typically cost $9,000 to $15,000, according to Schweiss Doors. Hydraulic doors in the same size range are approximately 10 percent more expensive, running $10,000 to $17,000 for a standard wind load configuration. As span widths increase beyond 80 feet, both bifold and hydraulic door costs escalate rapidly because the door panels become heavier and the structural support systems become more complex. A bifold or hydraulic door system for a 150-to-200-foot corporate jet hangar can cost $150,000 to $400,000 or more.

It is important to note that the door cost is only part of the total structural investment. The header beam, endwall columns, and foundation upgrades required to support a heavy bifold or hydraulic door can add 10 to 20 percent to the building’s structural steel cost compared to a sliding door system that transfers its weight to the ground. For developers evaluating hangar construction costs, the door system and its structural impact should be evaluated together as a single cost center rather than as separate line items.

The right door system depends on the aircraft being housed, the building’s span width, the site constraints, the local wind conditions, and the owner’s operational preferences. For single-engine and light twin-engine aircraft hangars with spans of 40 to 60 feet, bifold and hydraulic doors are both practical and cost-effective. The choice between them often comes down to operational speed, with hydraulic doors favored when fast access is a priority, and bifold doors preferred when the overhead canopy and snow-shedding capability are valued.

For corporate jet hangars with spans of 80 to 150 feet, both bifold and hydraulic systems remain viable but require heavy header beams and robust foundations. The structural cost premium should be weighed against the operational benefits. According to Arco National’s hangar design guide, the selection of door type must align with how aircraft enter and exit the facility, the frequency of door operations, and the wind and weather conditions at the airport location. Site constraints are also important—hydraulic doors require clear apron space in front of the building equal to the door height, while bifold doors need less forward clearance but more overhead space inside the building for the folded panels.

For wide-body commercial and military hangars with spans exceeding 150 feet, sliding door systems are typically the only practical option. The structural and cost advantages of ground-supported door panels become decisive at these widths. SteelCo’s guide to aircraft hangar clear span design provides additional context on how building span and door type interact in large hangar applications.

Wind load is the single most important engineering factor in aircraft hangar door design, and it has a direct impact on both the door cost and the building’s structural requirements. According to the International Building Code as referenced by UpCodes, the main wind force resisting system of an aircraft hangar must be designed for conditions with hangar doors closed at maximum design wind velocity, and for doors open to the maximum extent at a wind velocity of 60 miles per hour. This dual requirement means the building frame must resist full wind loads with the door closed and also handle the increased internal pressurization that occurs when the door is partially or fully open.

The hangar is treated as a partially enclosed building for wind load calculations, which increases the internal pressure coefficients compared to a fully enclosed structure. This classification adds structural demand to the primary frames, endwall bracing, and foundation anchorage. In hurricane-prone coastal regions, the wind load requirements can increase door and structural costs by 30 to 50 percent compared to inland locations with lower design wind speeds.

Door manufacturers engineer their products to specific wind load ratings, and the building engineer must ensure that the structural frame is designed to match those ratings. Mismatched door and building engineering is a common and expensive problem that can result in failed inspections, warranty voidance, or structural failure during a storm. Working with a steel building design partner who coordinates the door system and building engineering simultaneously is essential for avoiding these issues.

Q: What are the main types of aircraft hangar door systems?

A: The four main types are bifold doors, hydraulic doors, sliding doors, and vertical lift doors. Bifold doors fold upward and outward on cables, hydraulic doors swing outward as a single panel using hydraulic cylinders, sliding doors move horizontally on tracks, and vertical lift doors raise straight up into the building interior.

Q: How much do aircraft hangar doors cost?

A: Costs vary widely by type and size. For general aviation hangars with 40-to-60-foot openings, bifold doors cost $9,000 to $15,000 and hydraulic doors cost $10,000 to $17,000. For corporate jet hangars with 150-to-200-foot spans, door systems can cost $150,000 to $400,000 or more. Large commercial sliding systems can exceed $300,000.

Q: How do hangar doors affect building structural design?

A: Bifold and hydraulic doors impose heavy dead loads and wind loads on the header beam and endwall columns, requiring heavier structural framing and deeper foundations. Sliding doors transfer their weight to the ground through wheels, significantly reducing header loads. The door system can add 10 to 20 percent to the structural steel cost depending on the type selected.

Q: What door type is best for a general aviation hangar?

A: For single-engine and light twin-engine aircraft hangars with spans of 40 to 60 feet, bifold and hydraulic doors are both practical choices. Bifold doors are slightly less expensive and provide a canopy when open, while hydraulic doors open approximately three times faster and offer a flush exterior appearance.

Q: What is the wind load requirement for aircraft hangar doors?

A: The International Building Code requires hangars to be designed for full wind loads with doors closed and for doors open at up to 60 miles per hour. Hangars are classified as partially enclosed buildings, which increases internal pressure coefficients and adds structural demand to the primary frames and foundations.

Q: Can aircraft hangar doors be automated?

A: Yes, all four main door types are available with electric motor automation for push-button or remote-controlled operation. Automation is standard on most commercial hangar doors and adds $2,000 to $10,000 or more to the door cost depending on the system size and features.

Q: What door type works best for very wide hangars?

A: Sliding door systems are the preferred choice for hangars wider than 150 feet because they transfer door weight to the ground rather than to the building header. This eliminates the need for extremely heavy and expensive header beams that bifold or hydraulic systems would require at those widths.
