Warehouse Column Spacing: How Structural Grid Design Impacts Storage Efficiency

Every square foot inside a warehouse has a dollar value attached to it, and the structural grid that defines column spacing in a warehouse is one of the earliest design decisions that determines how much of that space actually earns its keep. Get the column grid right, and racking layouts align cleanly, forklifts move without obstruction, and the building maximizes usable storage from wall to wall. Get it wrong, and dead zones appear between columns, pallet positions are lost, and the facility never reaches its full operational potential.

For developers, owners, and general contractors planning a new warehouse building, understanding how warehouse column spacing affects everything from rack configuration to long-term revenue per square foot is essential. This guide breaks down the relationship between structural grid design and storage efficiency, with practical guidance on choosing the right bay dimensions for your next project.

Table of Contents

Intro

Why Warehouse Column Spacing Matters More Than You Think

How Column Grid Dimensions Affect Pallet Racking Layouts

The 40-Foot Standard: Why It Works for Most Warehouses

When Wider or Narrower Spacing Makes Sense

Clear Height, Bay Depth, and the Full Grid Equation

Designing the Right Grid with a Steel Building Partner

Conclusion

Frequently Asked Questions

Warehouse column spacing refers to the horizontal distance between structural columns inside a building, defined by the structural grid of rigid frames or portal frames. In a pre-engineered metal building, this grid is established during the design phase and cannot be economically changed once the steel is fabricated. That makes it one of the most consequential decisions in the entire warehouse construction process.

The column grid determines how efficiently racking systems, aisles, staging areas, and material handling equipment fit within the building envelope. According to LIDD, a supply chain design firm, 40-foot column spacings are clearly more space-efficient than other common dimensions for pallet racking layouts. When columns land in awkward positions relative to racking modules, facility operators lose pallet positions, narrow their aisles to unsafe widths, or leave unusable gaps that reduce the building’s effective storage density.

The financial impact is real. In a 100,000-square-foot distribution center leasing at $8 to $12 per square foot annually, even a five percent loss in usable storage area from poor column placement can represent tens of thousands of dollars in lost capacity every year. For owner-operators, that translates directly to fewer SKUs, slower throughput, and a longer payback period on the building investment.

Pallet racking is the backbone of most warehouse storage systems, and its dimensions are remarkably standardized. In the United States, the most common pallet rack section is 42 inches deep by 96 to 99 inches long, designed to hold standard 40-by-48-inch pallets. Rows are typically installed back-to-back with a flue space of approximately 6 to 12 inches between them, and aisles between facing rows generally range from 11 to 13 feet wide to accommodate sit-down counterbalanced forklifts.

According to Bastian Solutions, now part of Toyota Automated Logistics, the formula for calculating ideal column spacing is straightforward: take the rack depth multiplied by two, add the flue aisle width, then multiply by the number of rack bays that fit between columns. The goal is for every column to land squarely in the flue space between back-to-back runs of racking, where it will not interfere with pallet storage positions or mobile equipment. When this alignment works, the columns essentially disappear into the racking system and zero storage positions are sacrificed.

When the column grid does not align with racking modules, operators face difficult trade-offs. Columns that fall in the middle of an aisle force racking to shift, creating dead zones. Columns that land inside a rack bay eliminate one or more pallet positions at every level. Over a building with dozens of column lines, those lost positions add up quickly and permanently reduce the facility’s storage capacity.

Among warehouse designers and racking consultants, the 40-foot-by-40-foot column grid has become the de facto standard for good reason. A 40-foot bay width accommodates two back-to-back runs of standard pallet racking plus a full-width forklift aisle, with columns landing cleanly in the flue spaces. This configuration works in both directions of the building, giving tenants and operators maximum flexibility in how they orient their racking relative to dock doors and staging areas.

As LIDD’s warehouse design research explains, 40-foot spacings complement the 20-foot grid of standard racking modules. Two standard rack sections at roughly 8 feet each, placed back to back with a flue space, occupy about 17 feet. Add a 12-foot forklift aisle and another back-to-back rack pair, and the total comes to approximately 40 feet. The math is clean, and the result is a layout with no wasted space between columns.

A 41-foot column grid is another common variant that provides slightly more breathing room for flue spaces and column protection without meaningfully increasing steel costs. Both dimensions are widely supported by pre-engineered metal building manufacturers and represent the sweet spot where structural efficiency and operational efficiency overlap. For developers evaluating steel building costs, this alignment between structural design and tenant needs is a significant value driver.

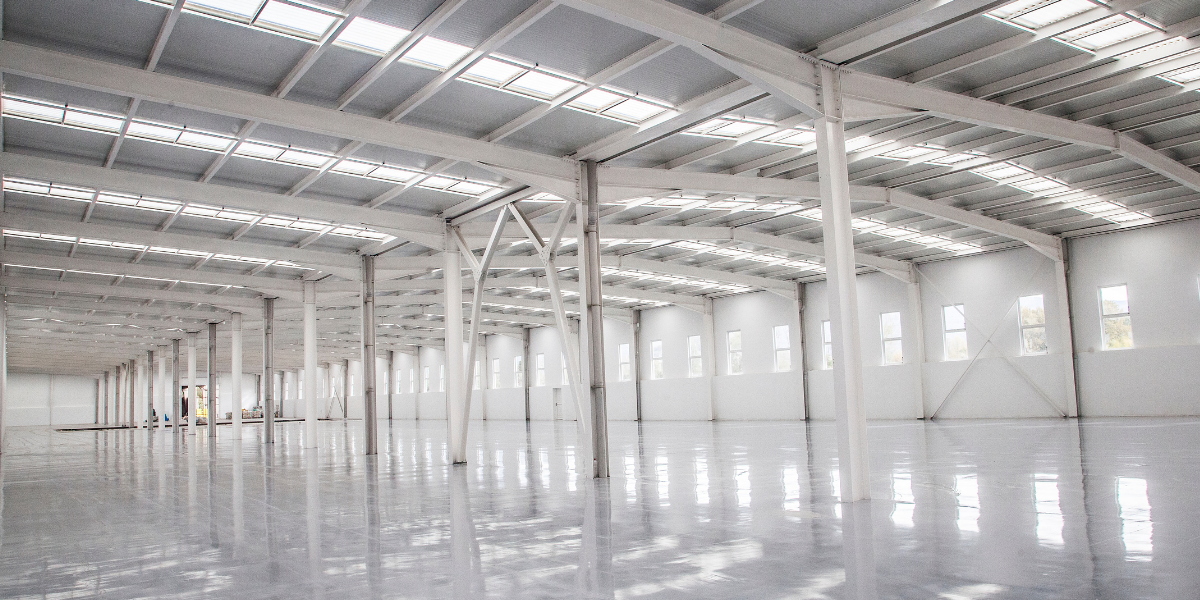

While 40 feet is the benchmark, not every warehouse application calls for that exact dimension. Wider column spacings of 50 to 60 feet are sometimes requested by developers who want maximum flexibility for future tenants or non-racking uses like bulk floor storage, cross-docking, or manufacturing. However, wider spans come with trade-offs that are important to understand.

According to LIDD’s analysis of wide-span configurations, 50-foot column centers can actually reduce storage capacity compared to 40-foot grids because the extra width does not align with standard racking modules. The leftover space between the last rack row and the column often cannot accommodate another full rack bay, resulting in dead zones that add square footage to the lease but not to the usable storage footprint. The structural cost also increases, as wider clear spans require heavier primary frames, deeper rafters, and more robust foundations.

Narrower spacings of 25 to 30 feet, on the other hand, can work well for smaller warehouses, light industrial applications, or facilities that rely on narrow-aisle or very-narrow-aisle (VNA) forklift systems. These tighter grids use less steel per bay and can reduce the building package cost, but they limit conventional racking options and may restrict future tenant flexibility. For most speculative industrial developments, the 40-foot grid remains the safest choice because it accommodates the broadest range of tenant operations.

Column spacing is only one dimension of the structural grid equation. Clear height and bay depth along the length of the building are equally important in determining a warehouse’s storage efficiency and market competitiveness.

According to CBRE’s 2026 U.S. Real Estate Market Outlook, tenants are increasingly pursuing a flight to quality, gravitating toward modern facilities with taller clear heights and stronger power infrastructure. Buildings constructed before 2000 with clear heights under 30 feet are increasingly considered functionally obsolete for distribution use, while new Class A warehouses are being built with 36-foot to 40-foot clear heights as standard. That additional vertical space allows operators to stack pallets higher, install taller racking systems, and dramatically increase cubic storage capacity without expanding the building footprint.

Bay depth, which runs along the length of the building perpendicular to the primary frames, also affects column placement. Standard bay depths of 25 to 30 feet are common in pre-engineered metal buildings and are driven primarily by secondary framing efficiency and roof purlin spans. When combined with a 40-foot column width, a 25-foot bay depth creates a grid that balances steel weight, fabrication cost, and operational flexibility. Understanding how these dimensions interact is a key part of the preconstruction planning process for any warehouse project.

The most effective way to optimize warehouse column spacing is to involve the steel building manufacturer and racking consultant early in the design process, ideally during schematic design before structural engineering begins. A qualified steel building design partner can model multiple grid configurations, compare steel weights and costs, and coordinate directly with the racking vendor to ensure that the structural grid and storage layout are fully aligned.

This collaborative approach is especially important for speculative developments where the end tenant may not be known at the time of design. In those cases, the 40-foot grid provides a safe default that will work for the widest range of warehouse operations. For build-to-suit projects where the tenant’s racking system and material handling equipment are already specified, the column grid can be fine-tuned to eliminate every possible inch of wasted space. According to NAIOP, the industrial real estate market is in a reset phase heading into 2026, with new leasing activity driven by tenants seeking modern facilities that offer superior clear heights, efficient column grids, and flexible layouts. Developers who invest in optimized structural design from the start are better positioned to attract and retain high-quality tenants in this competitive environment.

Whether the project is a single-tenant distribution center or a multi-bay industrial park, the column grid is the foundation that everything else builds on. Getting it right means more usable storage, more operational flexibility, and a building that delivers value for decades.

Q: What is the ideal column spacing for a warehouse?

A: The ideal column spacing for most warehouses is 40 feet by 40 feet. This dimension aligns with standard pallet racking modules, allowing columns to land in flue spaces between back-to-back rack rows without sacrificing pallet positions or narrowing forklift aisles. A 41-foot grid is also common and provides slightly more clearance.

Q: How does column spacing affect warehouse storage capacity?

A: Column spacing directly determines how many pallet racking bays fit between structural columns. When the column grid aligns with racking dimensions, zero storage positions are lost. When it does not, columns can eliminate pallet positions at every level, create dead zones, and force aisles to be widened or narrowed beyond optimal dimensions.

Q: Why is 50-foot column spacing less efficient than 40-foot for racking?

A: A 50-foot column grid does not align cleanly with standard pallet racking modules. The extra 10 feet between columns typically cannot accommodate another full rack bay, leaving dead space that increases the building footprint without adding usable storage. The wider span also increases structural steel costs.

Q: What is the relationship between column spacing and clear height in a warehouse?

A: Column spacing determines horizontal storage density while clear height determines vertical storage capacity. Modern Class A warehouses are built with 36-foot to 40-foot clear heights and 40-foot column grids to maximize both dimensions. Together, these specifications define the building’s total cubic storage volume.

Q: Can column spacing be changed after a warehouse is built?

A: Removing or relocating structural columns in an existing steel building is extremely difficult and expensive, as it requires reengineering the primary frame system. This is why getting the column grid right during the initial design phase is critical. Adding columns is more feasible but still involves significant structural modifications.

Q: How do I calculate the right column spacing for my warehouse?

A: The basic formula is: rack depth times two, plus flue aisle width, multiplied by the number of rack bays between columns. Working with a steel building manufacturer and a racking consultant simultaneously during design ensures the structural grid and storage layout are fully coordinated.

Q: What column spacing works best for cross-dock or bulk storage warehouses?

A: Cross-dock facilities and bulk floor storage operations benefit from wider column spacings of 50 to 60 feet because they rely less on pallet racking and more on open floor area. However, if the building may be converted to racking-based storage in the future, a 40-foot grid provides better long-term flexibility.
