PREFABRICATED STEEL BUILDING DESIGN

3D Design Tool For Steel Buildings

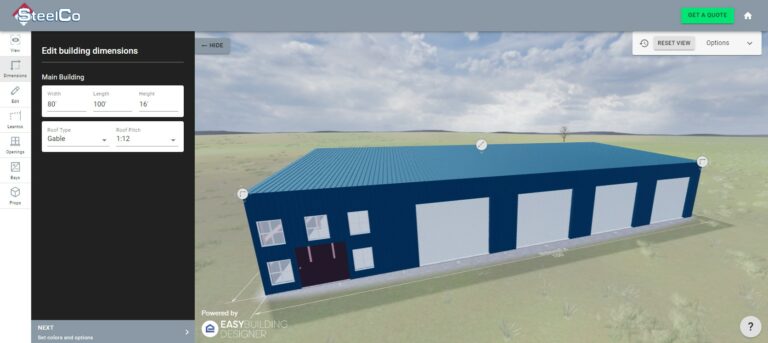

Steel Building - 3D Design Tool

We recommend revisiting this page on ‘Desktop’ view for an enhanced user experience with the design tool.  To proceed with a mobile experience, please click the link below that will open up a new webpage to better utilize the design tool on mobile.

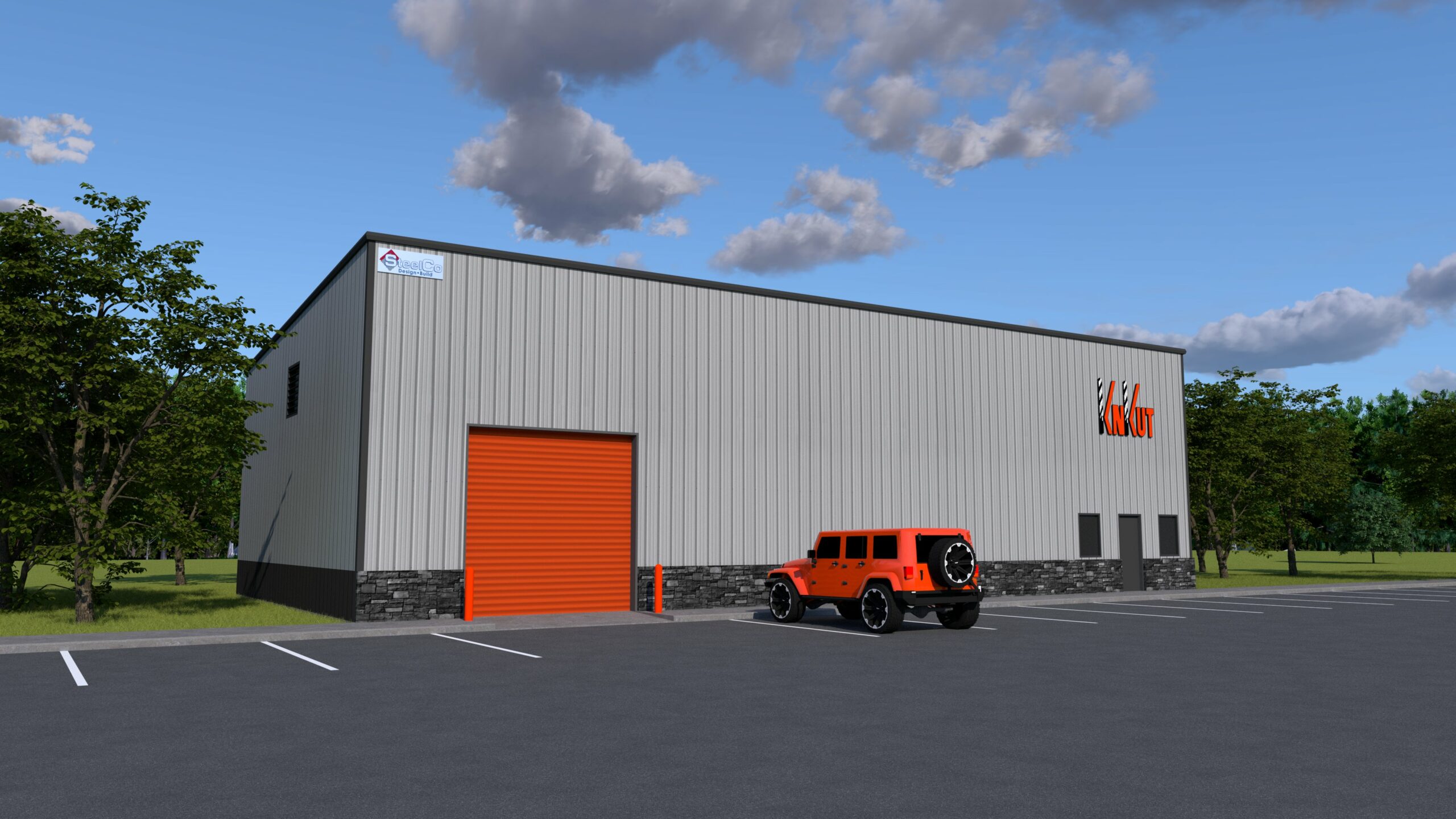

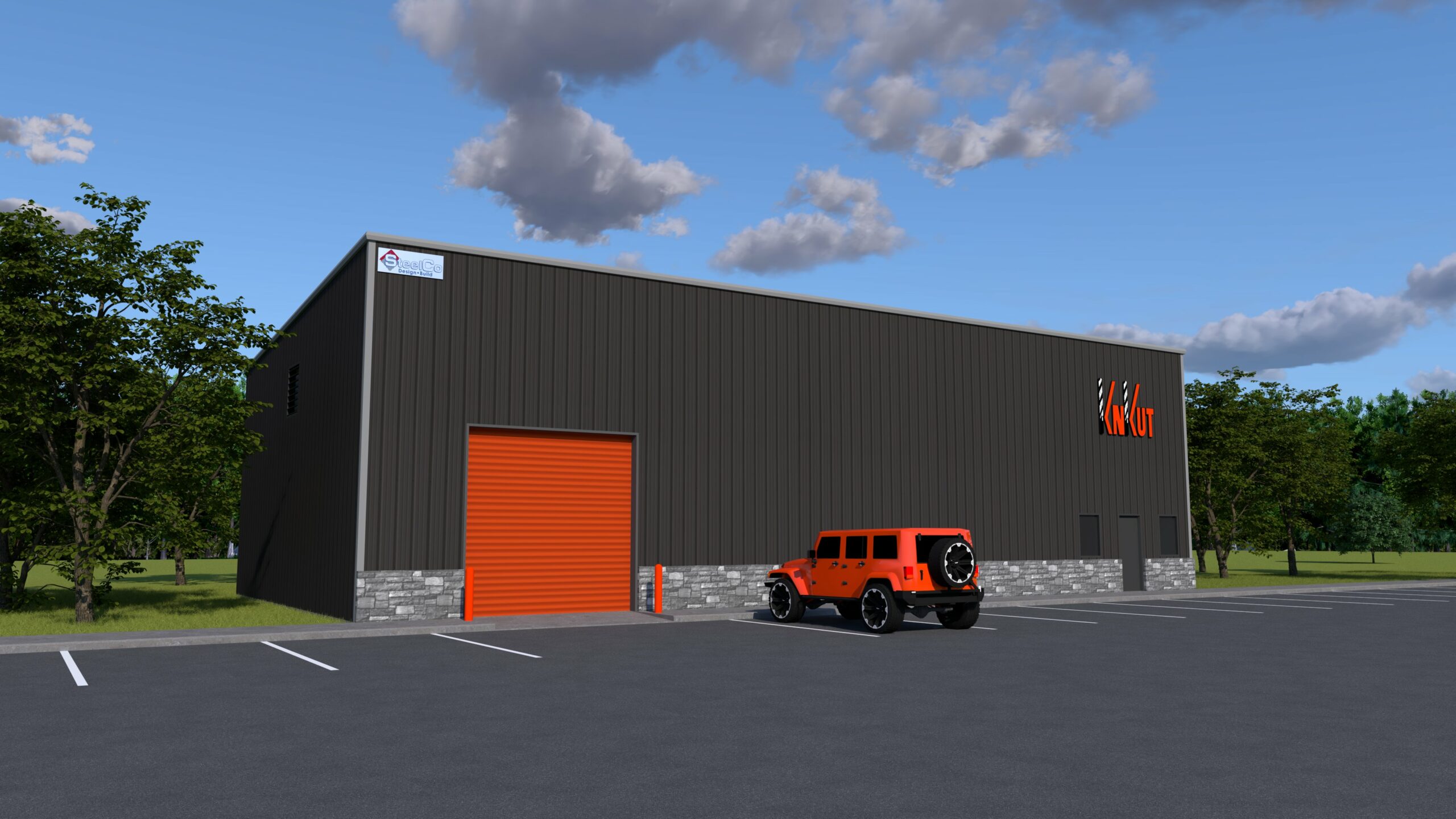

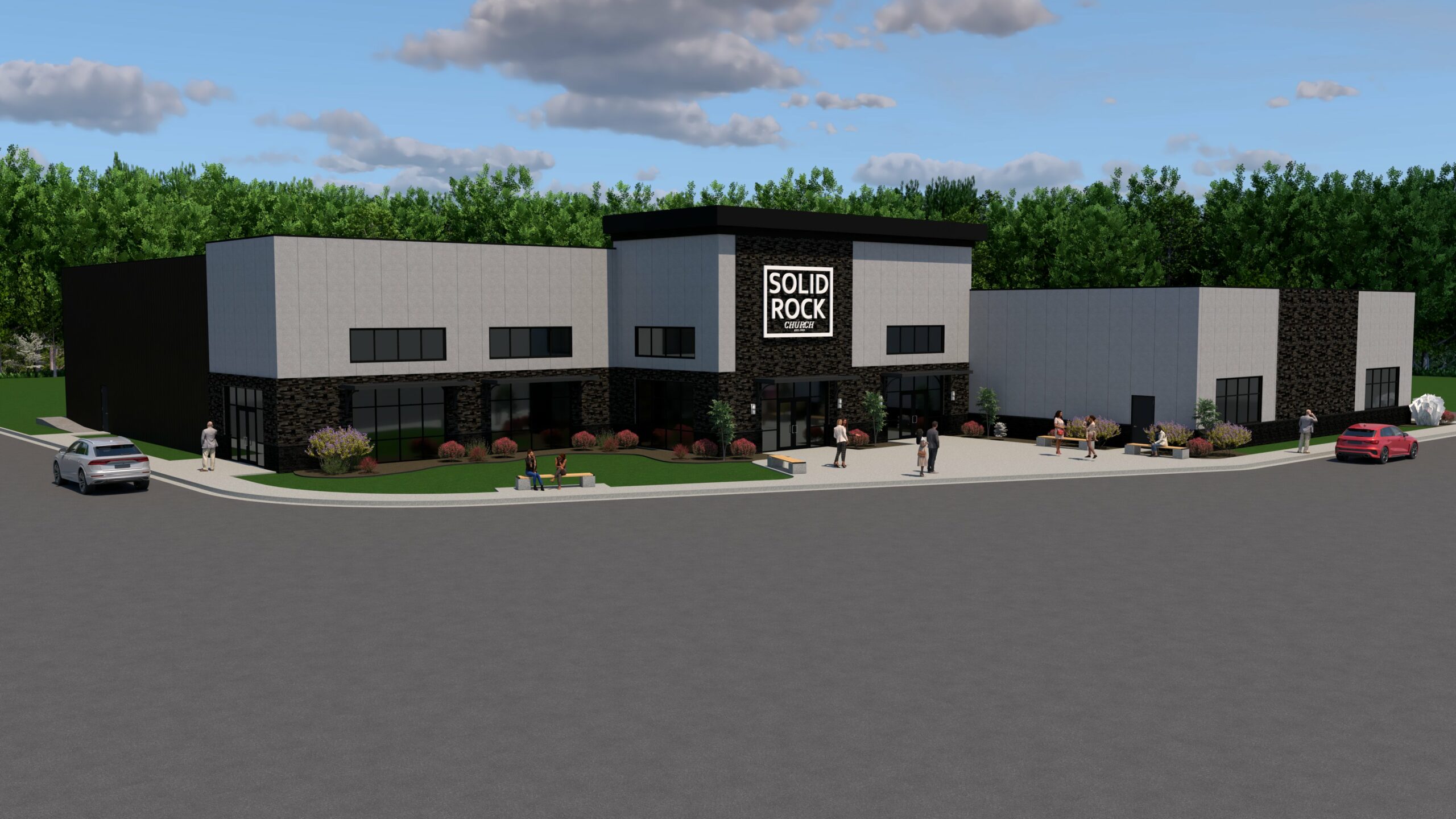

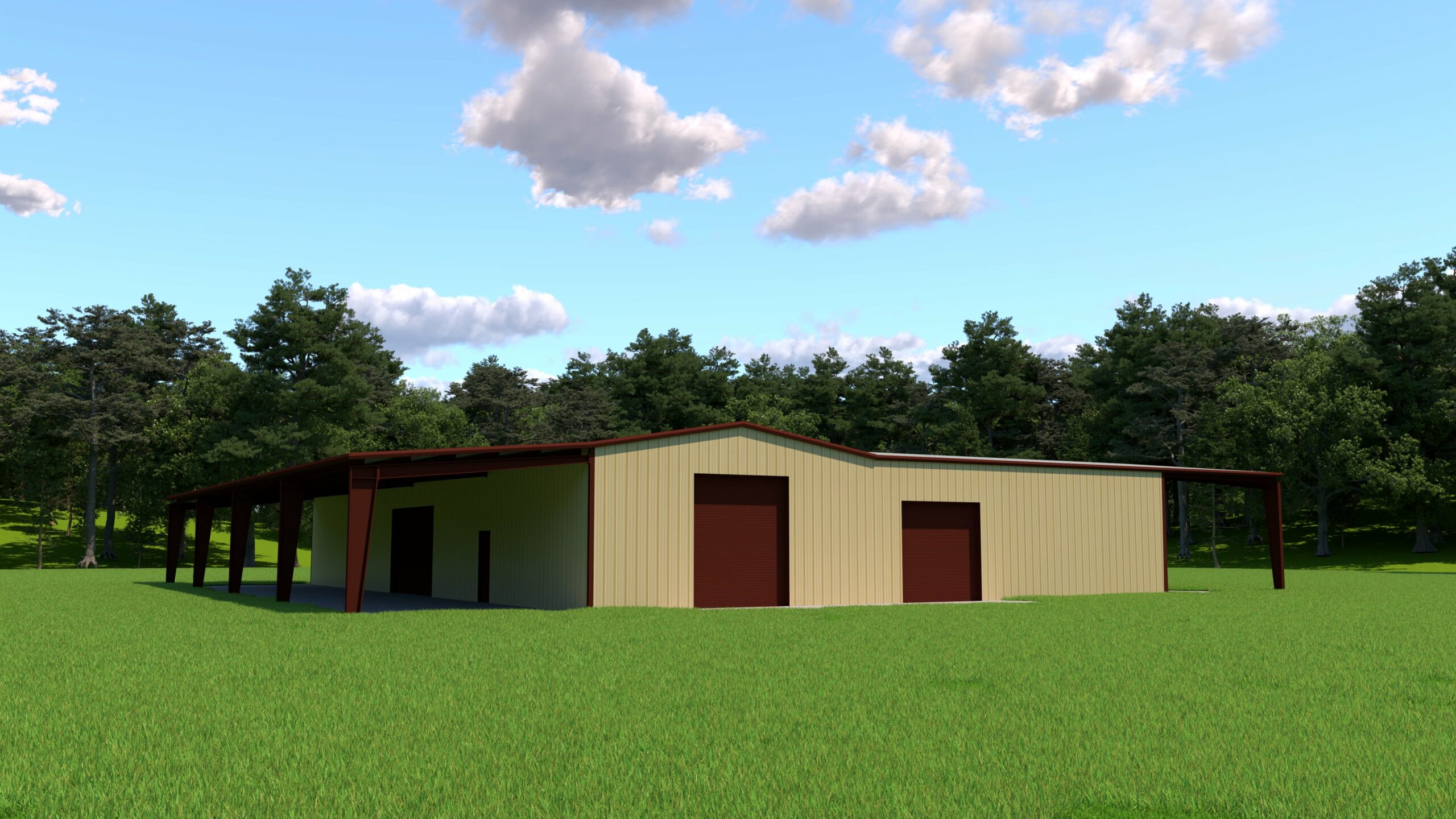

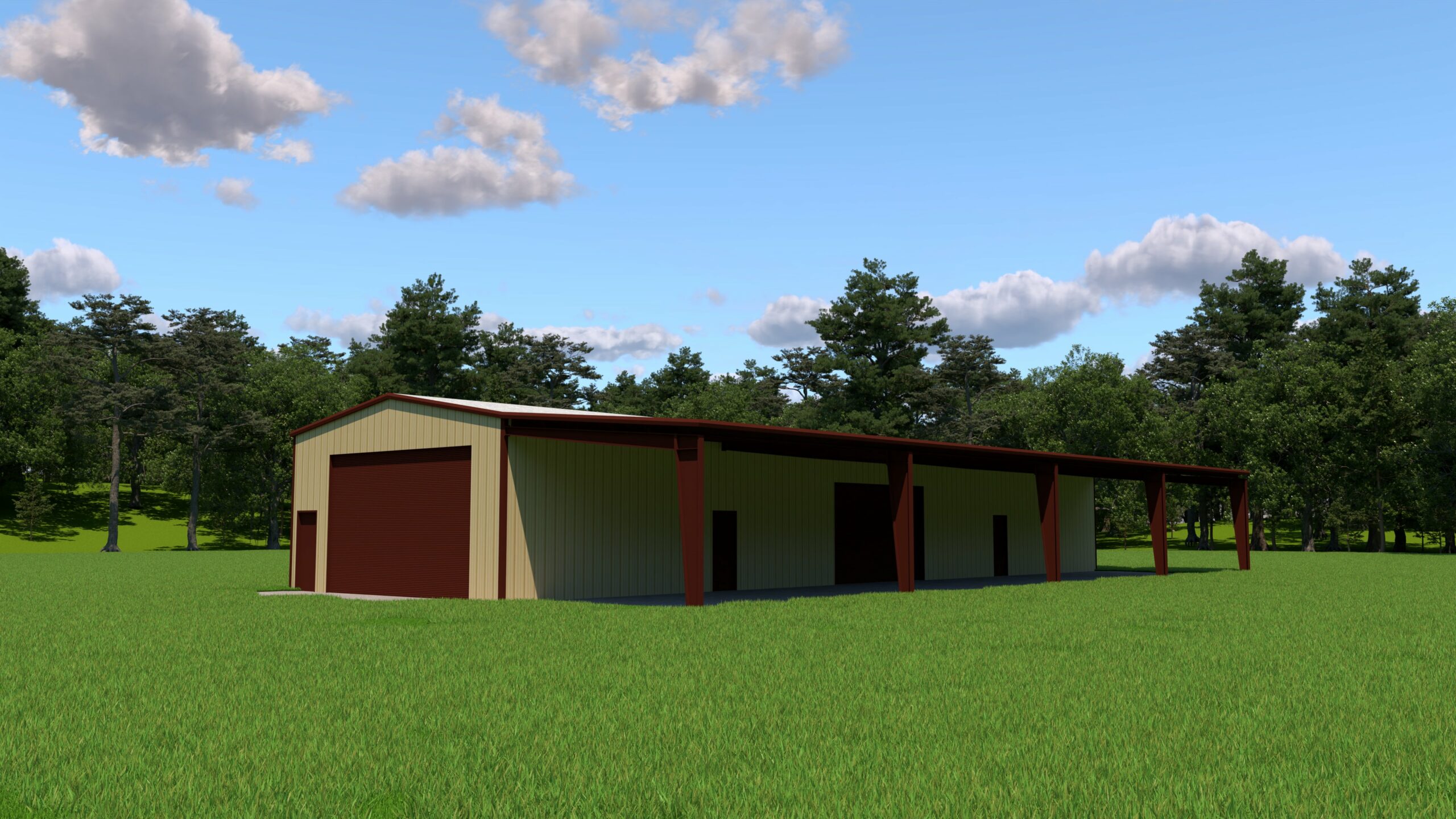

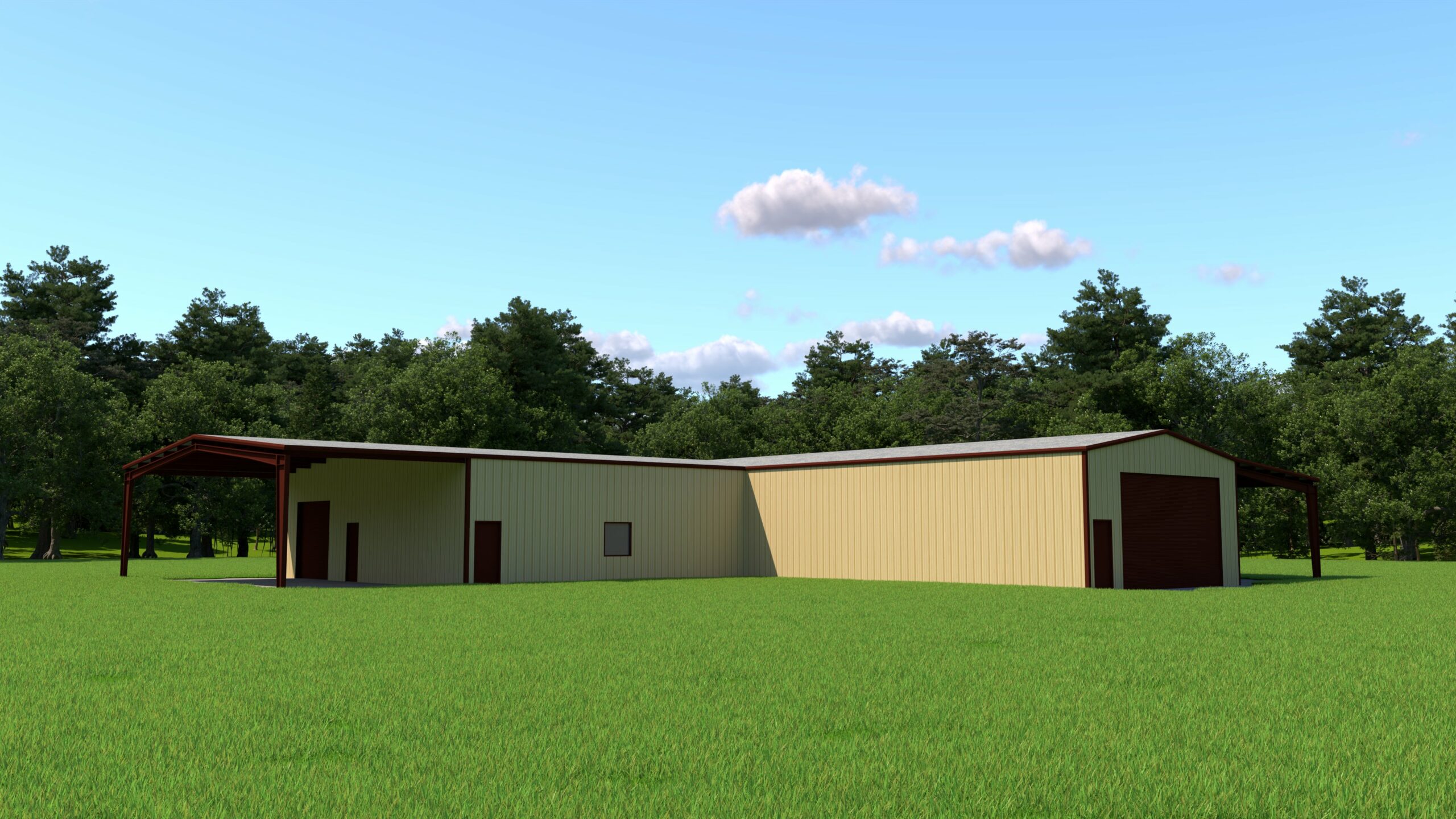

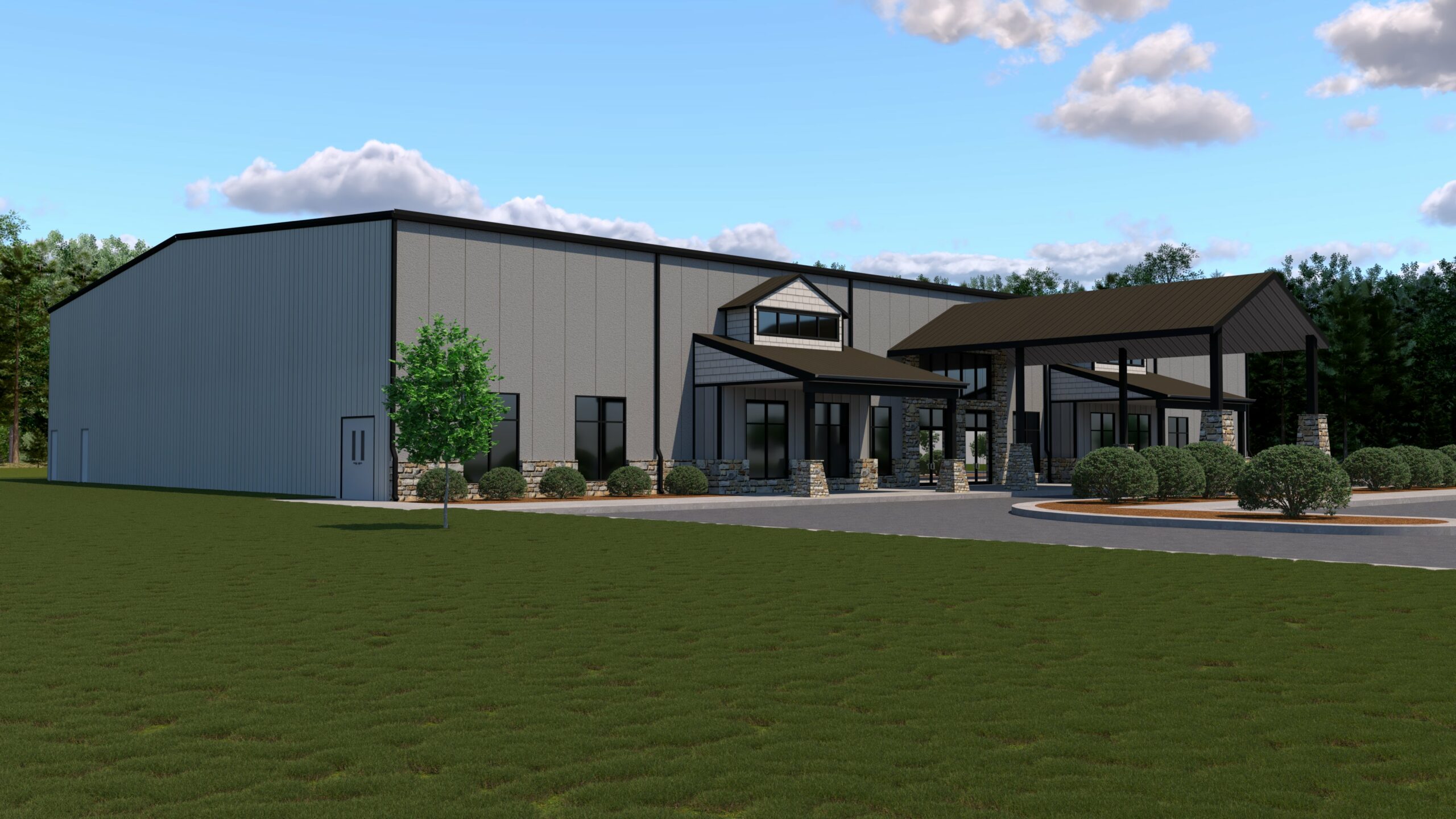

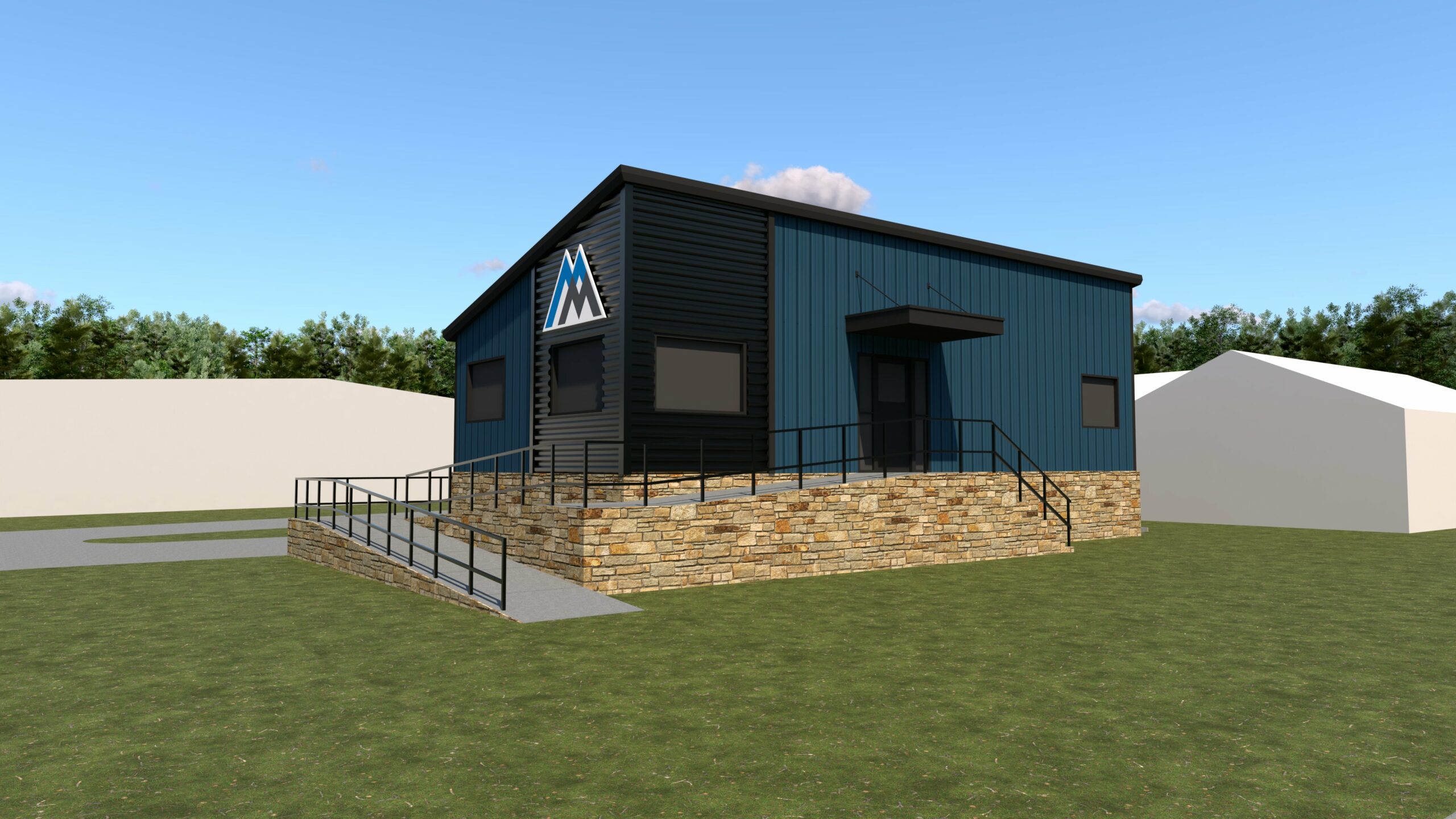

Steel Building Design Showcase

From barndominiums and garages to retail centers, offices, manufacturing plants, warehouses, churches, and more, SteelCo can assist you with providing innovative steel building designs that adhere to local building codes and our uncompromising quality standards. Our curated gallery below showcases diverse 3D renderings from our extensive portfolio, featuring both residential and commercial projects. This is one of many steps in the consulting, design, and quoting process that illustrates our expertise and collaborative spirit as we bring our clients’ visions to life. Each rendering not only captures the essence of the final structure but also serves as a testament to our commitment to design excellence. Explore our various design samples to glean inspiration for your next project and witness the transformative power of precision and creativity in steel building design.

Metal Building Color Options

Exterior painted roof and wall panels are precision roll formed from pre-painted galvanized or Galvalume® coils. The metal is first subjected to a strenuous cleaning process, followed by the application of oven-cured primer. Next, the finish coat is applied under constant monitoring for proper cure temperature and color uniformity. Before panels are formed, the finished coil is subjected to strait quality control tests including: physical bend resistance, impact resistance, and film thickness, hardness, gloss and color. The standard paint system is an industry proven Silicone-Polyester coating. Silicone-Polyester is a recognized standard of product quality for exterior building systems. Painted colors are matched as closely as possible. Exact color match should be made from metal chip samples.

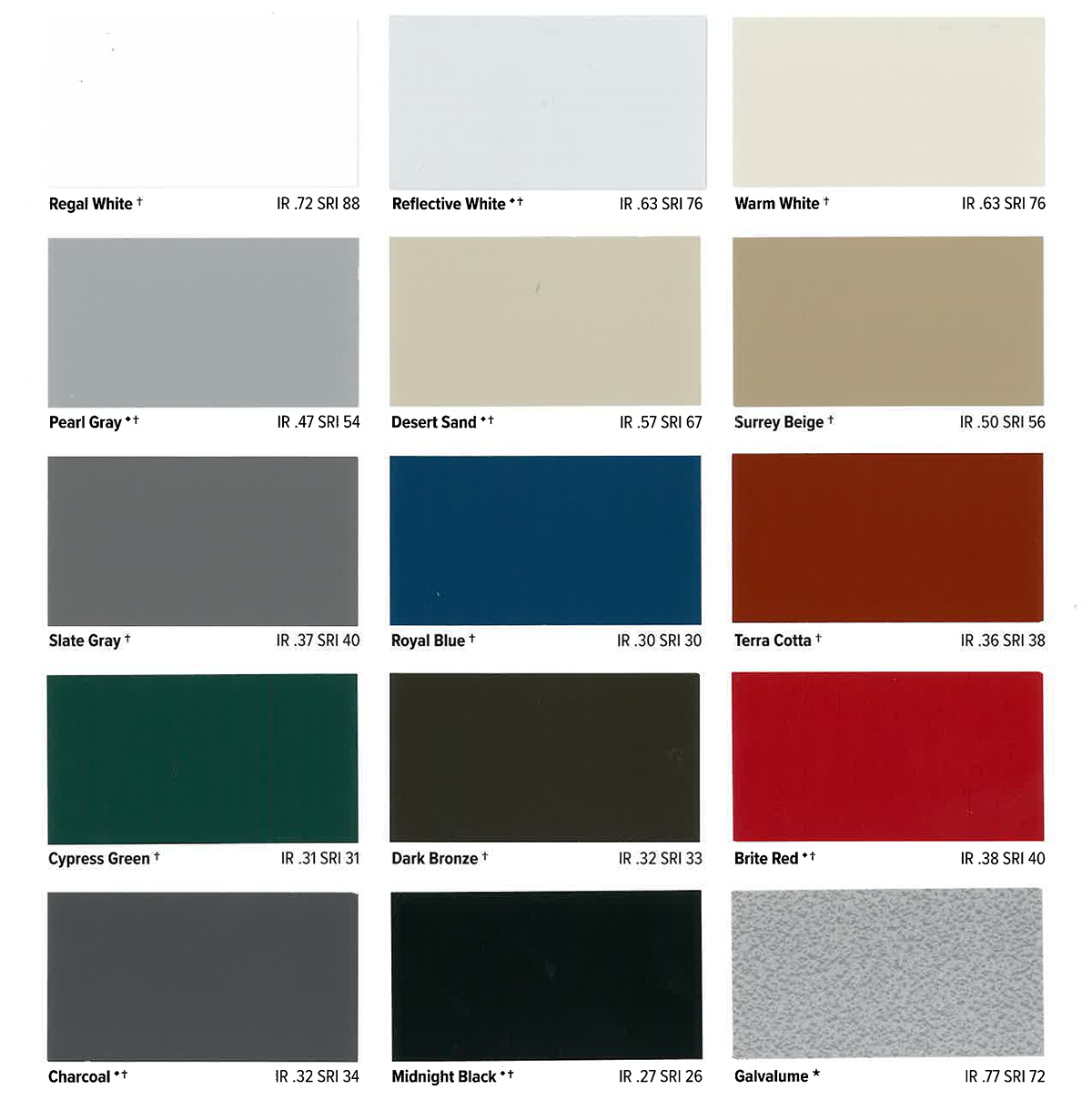

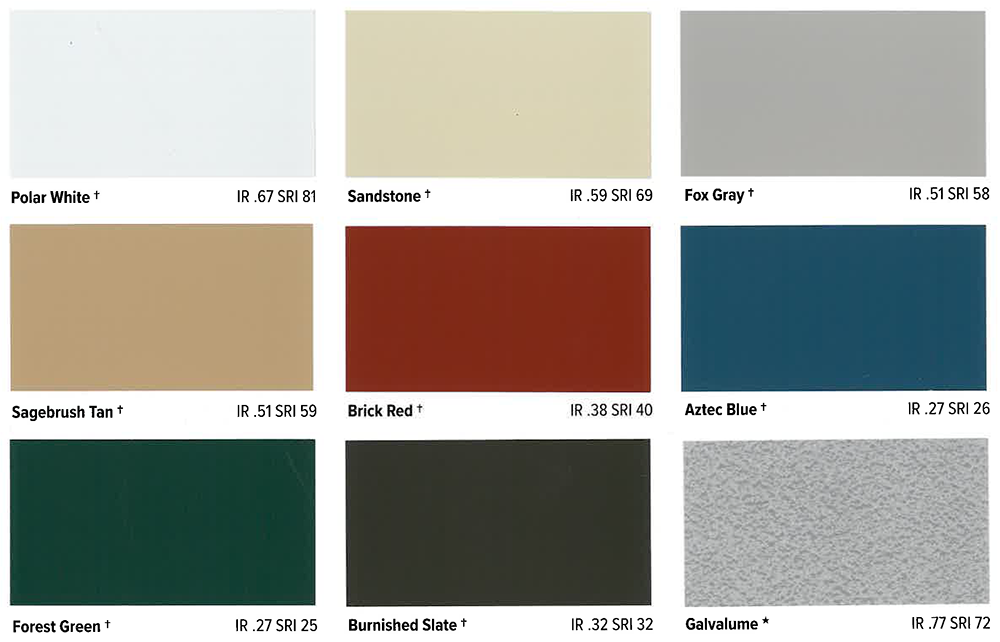

SP Cool Coatings

This cool silicone-polyester paint system utilizes a two-coat system that offers superior quality and durability.

*Non-Stock Color: Extended lead times may apply. *The Galvalume coating process is likely to result in variances in spangle (size, number, and reflection) from coil to coil which may result in noticeable shade variations. Galvalume is also subject to variable weathering and may appear to have different shades due to weathering characteristics. These shade variations are not cause for rejection. t ENERGY STAR® Qualified Color. All SP colors have a 25-year finish warranty. Colors shown closely approximate actual coating colors. These colors utilize Cool Coating Technology.

PVDF utilizes a two-coat system featuring fad resistant color, incredible durability, and environmentally-friendly “cool” technology.

*Non-Stock Color: Extended lead times may apply. *The Galvalume coating process is likely to result in variances in spangle (size, number, and reflection) from coil to coil which may result in noticeable shade variations. Galvalume is also subject to variable weathering and may appear to have different shades due to weathering characteristics. These shade variations are not cause for rejection. #ENERGY STAR® Qualified Color. All standard PVDF colors have a 35-year finish warranty. Colors shown closely approximate actual coating colors. These colors utilize Cool Coating Technology. Please note that PVDF is a slight upcharge over SP.

Panel Options

"A" Wall Panel

The “A” Panel is great for a decorative look to wall designs. Its clean exterior appearance is created by using recessed fasteners which are semi-concealed.

Roof/Wall Panel

This panel can be used for both a wall or roof panel and is commonly referred to as the PBR or screw down panel. This panel, commonly used for commercial, community and/or industrial applications, provides a strong but attractive panel.

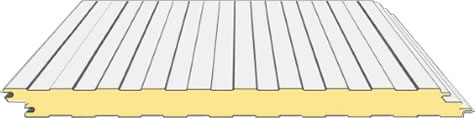

Insulated Wall Panel

Although the Insulated Wall Panel is not the most common, it is however available upon request. Insulated metal panels, while they can be more expensive than standard panels, offer more value to any building and give a higher quality appearance looking more consistent and clean.

Reverse Wall Panel

The Reverse Panel has the capability of compressing up to 4 inches of insulation in the walls without causing bulges in the panel. This panel offers a rigid surface while semi-concealing the fasteners and allowing for a cleaner more appealing look.

Standing Seam Roof Panel

The Standing Seam Panel requires a minimum slope of ¼”:12 and is available in 22, 24 or 26 gauge with 24 being standard. These panels can be either galvalume or painted. This panel is ideal for architectural, industrial or commercial applications.

Frame Styles

Lean-To

With common spans of 20 to 60 feet, the lean-to frame is attached to and is supported by a larger rigid frame. The lean-to is much different from the single slope, in that it is supported on the high side by an adjoining building column. It is recommended that a minimum of 1’-3” roof step be in place to add on a lean-to but is a very economical solution for expansions of existing buildings.

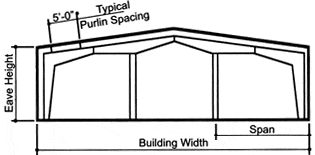

Modular Rigid Frame

Modular Rigid Frames can come in gable or single slope styles and assist with providing multiple spans over wider buildings. Roof slopes are offered from ¼ to 4:12. This frame style is very economical with spans of 30 to 80 feet and building widths of 60 feet to more than 300 feet.

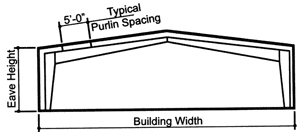

Rigid Frame / Clearspan / Gable

This frame is used in clearspan situations and can span from 40 to 250 feet without interior columns and can be used as gable or single slope. This is how building clearance in the center is maximized. A roof slope of ¼ to 6:12 is offered when using this frame.

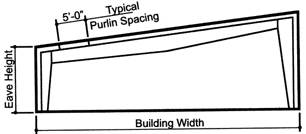

Single Slope Rigid Frame

Single Slope Rigid Frames are great for shopping centers or strip malls where there are drainage restrictions. This style frame is also good for future expansions. Due to the efficient use of tapered members and high strength steel, this frame is highly economical and maximizes the available clearance in a building.

Tapered Beam

Tapered beams are excellent for buildings under 60’-70’ in width and are designed for maximum efficiency of interior space as well as small crane support systems. Interior finishes can be easily installed due to the straight columns provided. Roof slopes are offered from ¼ to 1:12.

Steel Building Design FAQs

Q: How long does it take to get my building?
A: Lead times vary, but typically 2 weeks of drawings and 6-8 weeks for delivery (depending on complexity). More details are available on our General FAQs page.

Q: What are the benefits of steel construction?
A: All steel construction is built to last. These buildings are immune to termites. They are economical and can be constructed faster than their wooden counterparts.

Q: Is this really a DIY project?
A: Yes, for most cases where SteelCo cannot serve as your General Contractor (outside a 60+ mile range of Covington, GA). Our highly trained Sales Staff, however, can walk you through every step of the erection process and can help with AB location all the way to completion.

Q: Who pulls the permits?
A: A permit would be pulled by you or a General Contractor of your choosing. However, we will provide you with engineered stamped drawings designed to meet all local, country and state codes. More details are available on our General FAQs page.

Q: Do you have a steel buildings buyer’s guide?
A: Yes, we can e-mail it upon request. CLICK HERE to view our product brochure.

Q: Why choose SteelCo Buildings?
A: At SteelCo, we view and treat the customer as our top priority. We don’t pull any gimmicks. We are a veteran-owned and operated business, unmatched in customer service. We have over 100 combined years of metal building experience. We have been featured in Metal Construction News and were awarded the Dick James Small Business of the Year Award. We are also very reputable General Contractor for local projects and can answer your questions regarding any type of construction project. Ultimately, we care about your needs and value your business — our service levels and consultative efforts are a reflection of that commitment.
