Metal Building Roof Systems: Panel Types, Insulation, and Long-Term Performance

The roof is the most weather-exposed and thermally significant component of any metal building. It determines how the structure handles rain, snow, wind uplift, condensation, and heat transfer, and it accounts for a meaningful share of both initial construction cost and long-term maintenance expense. Yet roof system selection is one of the most commonly underspecified decisions in pre-engineered metal building projects, often reduced to a simple choice between two panel profiles without adequate consideration of insulation, fastener systems, slope requirements, or lifecycle cost.

For owners, developers, and general contractors planning a steel building project, understanding the differences between metal roof systems is essential for making a decision that balances upfront cost, energy performance, weather resistance, and maintenance demands over the life of the building. This guide covers the two primary panel types, insulation strategies, slope and drainage considerations, and the factors that drive long-term roof performance in metal buildings.

Table of Contents

Intro

Through-Fastened vs Standing Seam Roof Panels

Roof Slope and Drainage Design

Insulation Systems for Metal Building Roofs

Condensation Control and Vapor Management

Long-Term Maintenance and Lifecycle Cost

Conclusion

Frequently Asked Questions

Metal building roof panels fall into two fundamental categories: through-fastened (also called exposed-fastener or screw-down) panels and standing seam (also called concealed-fastener) panels. The distinction between these two systems goes far beyond aesthetics—it affects weather performance, thermal movement, maintenance requirements, and total installed cost.

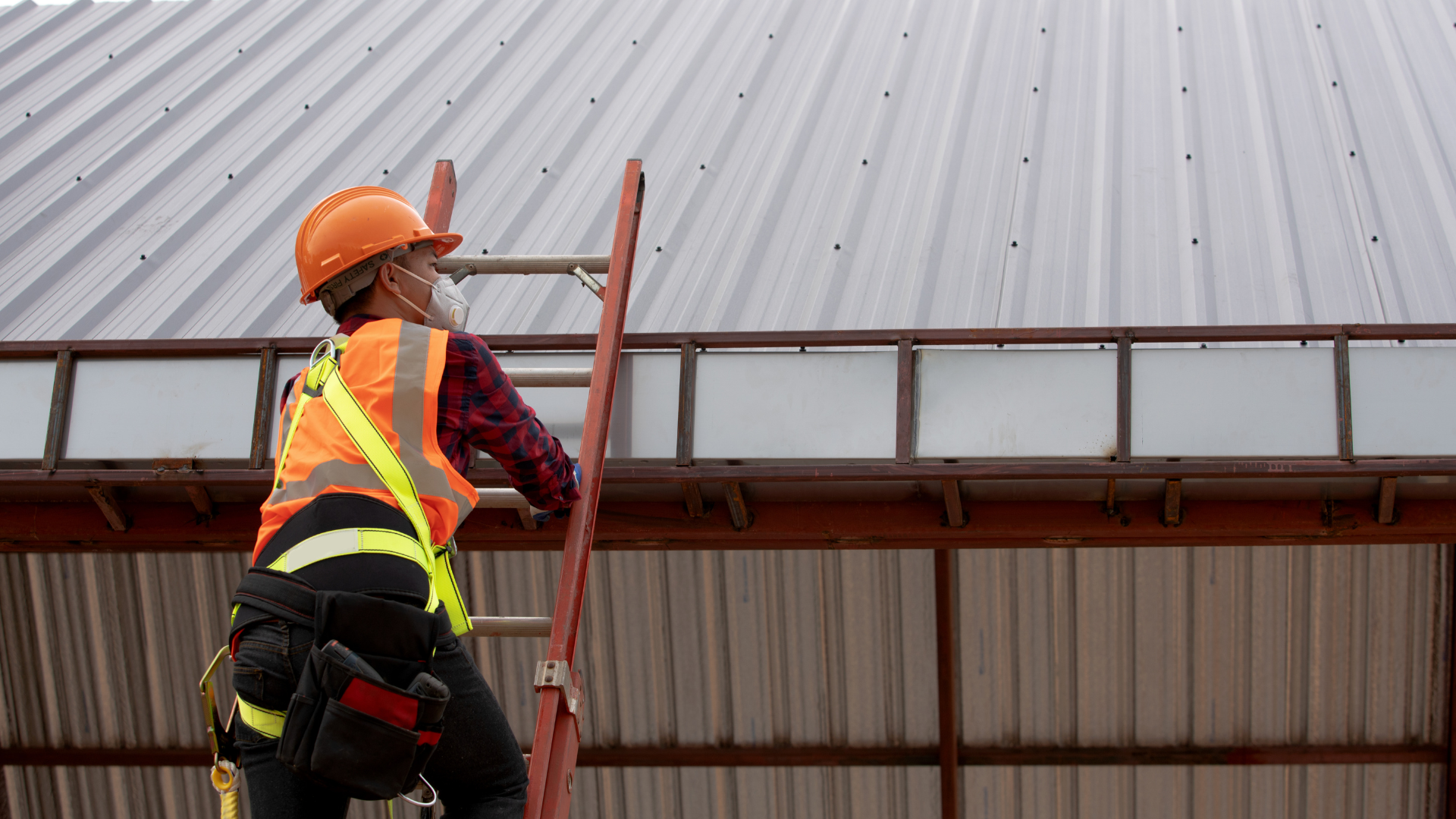

Through-fastened panels are secured directly to the roof purlins with self-drilling screws that penetrate the panel surface. According to Sheffield Metals’ comparison of standing seam and exposed-fastener systems, through-fastened panels are the lower-cost option with a simpler and faster installation process, making them the default choice for agricultural buildings, basic warehouses, and budget-driven projects where initial cost is the primary concern. However, the exposed fasteners are the system’s primary weakness. Each screw penetration creates a potential leak point, and the neoprene washers that seal each fastener degrade over time from UV exposure and thermal cycling, typically requiring re-fastening or washer replacement within 10 to 15 years.

Standing seam panels interlock along raised seams and attach to the purlins with concealed clips that allow the panel to expand and contract freely along its length. This clip attachment system eliminates roof penetrations in the field of the panel, which dramatically reduces the risk of leaks and eliminates the maintenance burden of exposed fasteners. Standing seam systems also accommodate thermal movement more effectively—a 100-foot-long steel panel can expand and contract by more than an inch between winter and summer temperatures, and standing seam clips allow this movement without stressing the panel or loosening the fasteners. Through-fastened panels resist this movement at every screw, which over time causes the screw holes to elongate (a condition called hole wallowing) and the panels to oil-can or buckle.

The cost differential between the two systems is significant but narrower than many owners expect. Standing seam roofing typically costs 15 to 25 percent more than through-fastened panels on a per-square-foot installed basis, but the elimination of fastener maintenance and the longer service life—often 40 to 50 years for standing seam versus 20 to 25 years for through-fastened—can make standing seam the lower-cost option on a lifecycle basis. For any building intended to remain in service for more than 15 to 20 years, or for any facility where leak risk carries significant consequences such as a warehouse storing sensitive inventory, standing seam panels are worth the initial premium.

Roof slope is a critical design parameter in metal building roof systems, affecting water drainage, snow load management, wind uplift resistance, and the minimum panel type that building codes will allow. According to the International Building Code provisions for metal roof systems referenced by UpCodes , metal roof panels must be installed at a minimum slope that ensures positive drainage and prevents water ponding, which can lead to corrosion, leaks, and structural overload.

Standing seam roof panels can be installed at lower slopes than through-fastened panels, with some standing seam systems approved for slopes as low as one-quarter inch per foot (a 1:48 or roughly 0.5-degree slope). Through-fastened panels generally require a minimum slope of at least one-half inch per foot, and many manufacturers recommend three-quarters of an inch per foot or steeper for reliable drainage. In practice, most metal buildings are designed with roof slopes between one-half and one inch per foot, which provides adequate drainage for both panel types while keeping the building profile relatively low and minimizing the amount of wall sheeting required at the eave-to-ridge height differential.

For buildings in heavy snow regions, steeper slopes of one and a half to two inches per foot may be required to prevent snow accumulation that exceeds the designed roof live load. Steeper slopes also help shed snow and ice more quickly, reducing the sustained loads on purlins and panel clips. However, steeper slopes increase wind uplift forces on the windward roof surface, so there is an engineering trade-off between snow load management and wind resistance that must be evaluated on a project-by-project basis as part of the overall steel building design process.

Roof insulation is one of the most impactful decisions in metal building design because the roof is the largest surface area exposed to solar heat gain in summer and radiant heat loss in winter. According to Therm-All’s metal building insulation guide, an uninsulated or underinsulated metal roof can account for 25 to 35 percent of a building’s total energy loss, making the roof the single largest opportunity for improving a metal building’s energy performance.

The most common insulation system for metal building roofs is fiberglass batt insulation draped over the purlins before the roof panels are installed. Standard batt thicknesses range from three inches (R-10) to six inches (R-19) for basic applications, with double-layer or filled-cavity systems reaching R-30 or higher for conditioned buildings. For buildings that require higher thermal performance, such as climate-controlled warehouses or manufacturing facilities, insulated metal panels (IMPs) offer an integrated solution where rigid insulation foam is factory-bonded between inner and outer metal skins. IMPs provide continuous insulation without the thermal bridging that occurs at purlin contact points in batt systems, and they achieve R-values of R-25 to R-40 or higher in common thicknesses.

The choice between batt and IMP insulation depends on the building’s intended use, the local climate zone, and the energy code requirements in the project jurisdiction. According to the MBMA Metal Building Systems Manual, the 2024 edition includes updated guidance on insulation requirements that align with current energy codes, reflecting the industry’s move toward higher-performance building envelopes. For buildings subject to ASHRAE 90.1 or IECC energy code compliance, the required roof insulation R-value varies by climate zone and building occupancy type, and may mandate continuous insulation solutions like IMPs rather than simple batt systems. Understanding these requirements early in the building cost estimation process prevents costly redesigns later.

Condensation is the most common cause of premature deterioration in metal building roof systems, and it is almost entirely preventable with proper design. Condensation occurs when warm, moist interior air contacts the underside of a cold metal roof panel, causing water droplets to form on the panel surface. In uncontrolled conditions, this dripping condensation can damage stored goods, corrode structural members, saturate fiberglass insulation and destroy its thermal performance, and create conditions for mold growth.

Vapor retarders are the primary line of defense against condensation in metal building roofs. A vapor retarder is a membrane or coating installed on the warm side of the insulation—typically between the insulation and the building interior—that prevents moisture-laden air from reaching the cold roof panel surface. According to Metal Construction News coverage of MBMA guidance, the proper specification and installation of vapor retarders is one of the most critical details in metal building roof design, and errors in vapor retarder continuity are a leading cause of condensation-related roof failures in metal buildings.

For buildings with high interior humidity—such as food processing facilities, indoor pools, agricultural buildings housing livestock, or any facility with regular wash-down operations—a more robust approach is required. These buildings may need a dedicated vapor barrier rather than a simple vapor retarder, combined with mechanical ventilation to remove moist air before it contacts cold surfaces. Insulated metal panels provide better condensation resistance than batt systems in high-humidity applications because the continuous foam core eliminates the air gaps where condensation can form, and the interior metal skin acts as an integral vapor barrier.

The true cost of a metal building roof system extends far beyond the initial material and installation price. Maintenance requirements, expected service life, and the cost and complexity of eventual replacement or re-roofing all factor into the lifecycle cost that determines which system delivers the best long-term value.

Through-fastened roof panels require periodic inspection and maintenance of the exposed fasteners, typically starting within 8 to 10 years of installation. Neoprene washers dry out, crack, and lose their seal, requiring either individual fastener replacement or a full re-fastening of the entire roof. According to RoofSmart, the typical maintenance cycle for exposed-fastener panels includes re-torquing or replacing fasteners every 10 to 12 years, with a full panel replacement expected at 20 to 25 years. Over a 40-year building life, an owner may spend more on through-fastened roof maintenance and replacement than the original standing seam premium would have cost.

Standing seam panels require far less maintenance because there are no exposed fasteners to degrade. The concealed clip attachment allows thermal movement without panel stress, eliminating oil-canning and hole wallowing. A well-installed standing seam roof with factory-applied paint finish typically lasts 40 to 50 years with minimal intervention beyond periodic cleaning and sealant inspection at penetrations and transitions. For projects evaluated through a preconstruction planning process, the lifecycle cost analysis often makes standing seam the clear winner for any building with a planned service life beyond 20 years.

Q: What is the difference between through-fastened and standing seam metal roof panels?

A: Through-fastened panels are secured with exposed screws that penetrate the panel surface, while standing seam panels interlock along raised seams and attach with concealed clips. Standing seam systems eliminate roof penetrations, accommodate thermal movement, and last significantly longer, but cost 15 to 25 percent more to install.

Q: How long does a metal building roof last?

A: Through-fastened (exposed-fastener) roofs typically last 20 to 25 years before requiring replacement, with fastener maintenance needed every 10 to 12 years. Standing seam roofs with concealed clips and factory finishes typically last 40 to 50 years with minimal maintenance.

Q: What insulation should I use in a metal building roof?

A: Fiberglass batt insulation (R-10 to R-19) is common for basic applications. For higher-performance buildings, double-layer batts (R-30+) or insulated metal panels (R-25 to R-40+) provide better thermal performance. The required R-value depends on your climate zone and local energy code requirements.

Q: What causes condensation on metal building roofs?

A: Condensation occurs when warm, moist interior air contacts the cold underside of the metal roof panel. It is prevented by installing a vapor retarder on the warm side of the insulation and ensuring adequate ventilation to remove moisture-laden air before it reaches the roof surface.

Q: What is the minimum roof slope for a metal building?

A: Standing seam panels can be installed at slopes as low as one-quarter inch per foot. Through-fastened panels generally require at least one-half inch per foot, with many manufacturers recommending three-quarters of an inch per foot or steeper for reliable drainage.

Q: Are insulated metal panels worth the extra cost?

A: Insulated metal panels (IMPs) are more expensive than batt insulation but provide continuous insulation without thermal bridging, built-in vapor barriers, and faster installation. They are particularly cost-effective for conditioned buildings, high-humidity facilities, and projects where energy code compliance requires high R-values.

Q: How do I choose between panel types for my metal building?

A: Consider the building’s planned service life, use type, and interior environment. Through-fastened panels are appropriate for short-term, dry-use buildings like agricultural storage. Standing seam panels are the better choice for any building intended to last more than 20 years, any facility storing moisture-sensitive goods, or any conditioned interior space.
