Grain Storage Building Design: Layout, Ventilation, and Expansion Considerations

A well-planned grain storage building can mean the difference between preserving harvest quality for months and watching moisture, pests, and temperature swings erode every bushel you worked to grow. Whether you are a mid-size row-crop operation adding on-farm capacity or a commercial elevator expanding throughput, grain storage building design decisions made before the first concrete pour will shape operational efficiency for decades. Steel building design principles translate directly into grain storage because clear-span steel frames eliminate interior columns that obstruct loading equipment, and pre-engineered components allow precise bay spacing matched to aeration ductwork.

Flat-storage buildings, upright bins, and concrete silos each occupy a distinct niche in post-harvest logistics, yet all three share the same engineering fundamentals: controlling airflow, managing moisture at the floor interface, and leaving room for future growth. Growers who rush past these fundamentals often discover that retrofitting ventilation or widening door openings after erection costs two to three times more than getting the spec right the first time. The sections below walk through every critical decision point, from choosing the right building type and orienting it on the site to selecting fan capacity and designing floors that shed condensation rather than trapping it.

Throughout the guide, data from university extension services and industry publications anchor each recommendation so you can cross-check numbers with your own agronomist or engineer. By the end, you will have a practical framework for specifying a grain storage building that protects quality today and accommodates growth tomorrow.

Table of Contents

Intro

Types of Grain Storage Buildings

Site Layout and Access Planning

Ventilation Systems for Grain Quality

Floor Systems and Moisture Management

Planning for Expansion

Cost Considerations and Current Market Trends

Conclusion

Frequently Asked Questions

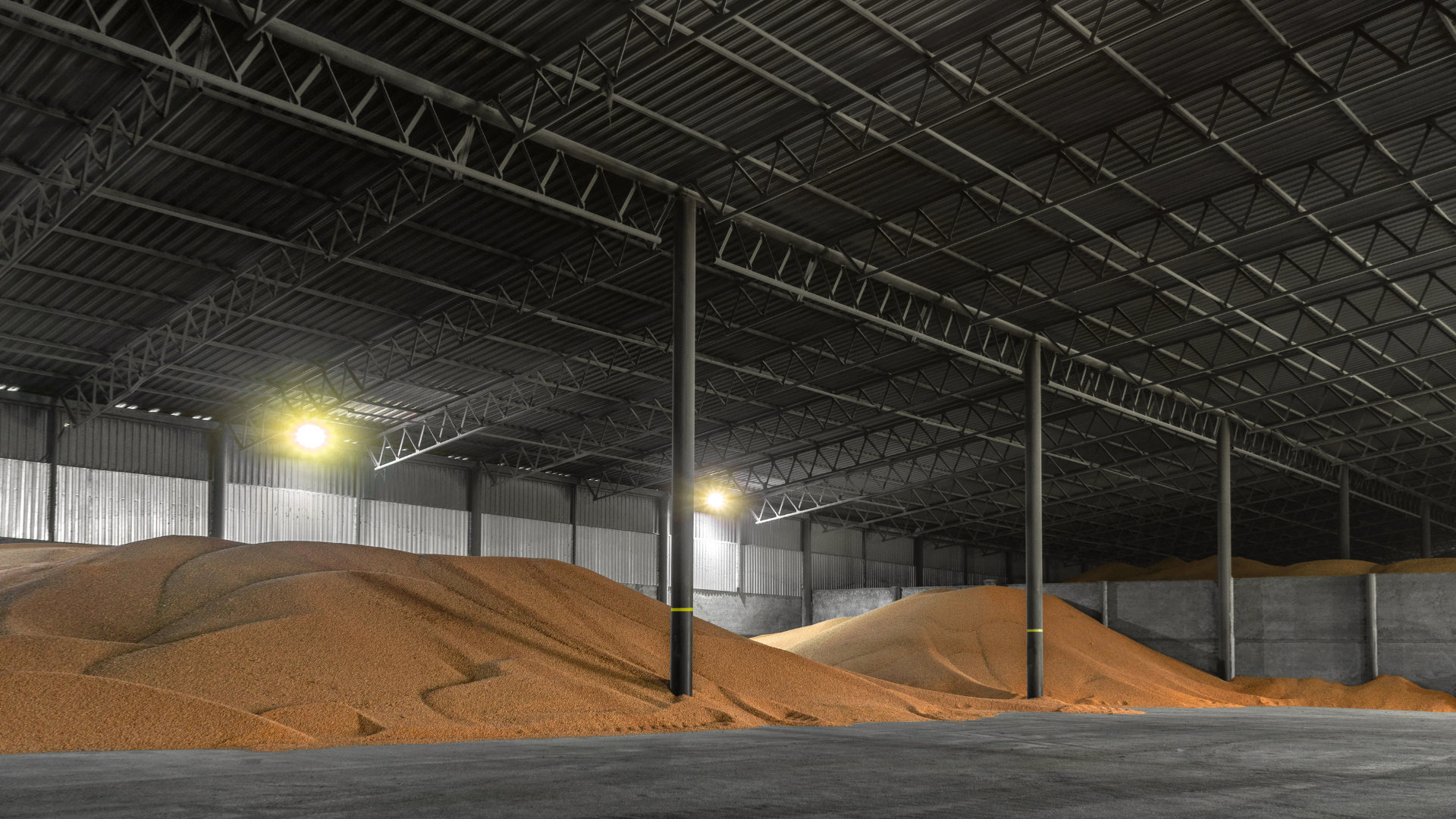

Grain storage structures generally fall into three broad categories: flat-storage buildings, upright cylindrical bins, and tower silos. Flat-storage buildings are the workhorses of on-farm and commercial operations that handle multiple commodities in the same season because grain can be pushed in and pulled out with front-end loaders, and the building can double as equipment shelter during off-months. Steel-framed flat-storage buildings offer clear spans up to 200 feet, which means no interior columns interfering with loading patterns or sweep augers. Purdue Extension notes that positive-pressure ventilation designs are preferred for flat storage because they force conditioned air up through the grain mass rather than pulling humid ambient air down through the pile, which reduces condensation on the roof deck and extends safe holding time.

Upright bins, typically corrugated steel cylinders with hopper or flat bottoms, dominate operations that store a single commodity long term and want gravity-assisted unloading. Bins range from 5,000 to 1.5 million bushels and stack efficiently on a compact pad, but they limit commodity flexibility because switching crops requires a full cleanout. Tower silos, once common for high-moisture corn and silage, have largely given way to bag storage and sealed bins in modern operations. For mixed-use agricultural properties, a commercial steel building engineered as a flat-storage facility offers the best balance of versatility, speed of erection, and long-term durability because the steel frame resists lateral grain pressure when properly braced and can be clad with insulated metal panels that moderate interior temperature swings.

Selecting the right type hinges on three variables: the number of commodities handled per year, peak throughput requirements at harvest, and whether the structure will serve secondary functions such as equipment storage or seed conditioning. Operators who anticipate handling more than two commodities per season almost always find that a flat-storage steel building delivers more operational flexibility per dollar than an equivalent investment in bin capacity, especially when factoring in the cost of multiple unloading systems for segregated bins.

Site planning for a grain storage building begins with traffic flow. Semi-trailers hauling grain from the field need a clear loop that lets them enter, dump, and exit without reversing, because backing a loaded trailer across a muddy yard during harvest is a safety hazard and a bottleneck that slows receiving rates. The ideal layout places the dump pit or receiving hopper at one end of the building with an all-weather approach road rated for 80,000-pound gross vehicle weight. Experienced operators plan for future expansion from the very first site plan by leaving open pads adjacent to the initial building where additional bins or a second flat-storage structure can tie into existing conveyors without rerouting traffic. Orientation matters for both grain quality and structural loads. In regions with prevailing winds from the west or northwest, aligning the building ridge east-towest allows endwall vents to capture natural cross-ventilation during shoulder seasons when fans are off. At the same time, the long sidewalls face north and south, which balances solar heat gain and avoids the asymmetric thermal loading that can cause condensation pockets on one side of the grain mass. Drainage is equally critical: the finished pad should slope at a minimum of two percent away from the building perimeter, and downspouts should discharge into a swale or tile system that moves water at least 50 feet from the foundation to prevent hydrostatic pressure against the slab. Electrical and utility planning deserves attention early because aeration fans, grain dryers, and lighting circuits can demand 400-amp or larger three-phase service. Running a utility trench after the concrete is poured means cutting through finished slabs and potentially compromising vapor barriers. A preconstruction checklist that addresses electrical load calculations, water-supply access for dust suppression, and fire-suppression requirements before design finalization will prevent costly change orders during construction.

Ventilation is the single most consequential engineering decision in grain storage building design because stored grain is a living biological system that generates heat, moisture, and carbon dioxide as it respires. Uncontrolled temperature gradients create convection currents that move moisture to cold surfaces, forming crusted layers of spoiled grain near walls and rooflines. Purdue Extension research on dry grain management establishes that aeration rates between one-tenth and one cubic foot per minute per bushel are most common for cooling and conditioning, with one-twentieth CFM per bushel adequate for maintenance aeration in well-sealed bins. For flat-storage buildings, the higher rate is preferred because shallow grain depths and irregular pile shapes make uniform airflow harder to achieve.

Fan sizing follows directly from aeration rate and storage volume. A 60-by-120-foot flat-storage building holding grain 15 feet deep at the peak contains roughly 40,000 bushels, which at one-tenth CFM per bushel requires 4,000 CFM of fan capacity. Purdue guidance specifies roof vent openings of at least one square foot per 1,000 CFM, so this example building needs a minimum of four square feet of ridge or gable-end exhaust venting. Under-sizing exhaust venting creates back-pressure that reduces effective airflow and can cause structural damage to roof panels during high-output fan operation. Positive-pressure systems, where fans push air into the duct network beneath the grain, are strongly preferred over negative-pressure designs because they avoid pulling rain, snow, and ambient humidity in through the exhaust openings.

Temperature monitoring cables embedded in the grain mass complete the ventilation strategy by giving operators real-time data on hotspot formation. Modern wireless sensors transmit readings to a smartphone app, eliminating the need to climb bins or open hatches for manual probing. The best practice is to cool grain below 50 degrees Fahrenheit in fall and warm it gradually in spring to prevent condensation as ambient temperatures rise, a cycle that typically requires two to four aeration events per storage season depending on climate zone.

The floor of a grain storage building serves three simultaneous roles: it carries the static load of stored grain, which can exceed 50 pounds per square foot at a 15-foot pile depth; it houses the aeration duct network that distributes air through the grain mass; and it acts as the primary moisture barrier between damp subgrade soils and dry grain. A six-inch reinforced concrete slab over a well-compacted granular base and a 10-mil polyethylene vapor barrier is the industry standard, but the details matter enormously. Joints should be saw-cut at 12-to-15-foot intervals to control cracking, and joint sealant must be flexible enough to accommodate seasonal thermal movement without opening gaps that admit ground moisture.

Aeration ducts can be surface-mounted perforated tubes, above-grade formed channels, or below-grade tunnels cast into the slab. Surface-mounted ducts are the least expensive but the most disruptive to loading and unloading equipment because loaders must drive over or around them. Below-grade tunnels provide a perfectly flat floor surface and protect ductwork from damage, but they add 15 to 20 percent to the slab cost and require careful waterproofing to prevent groundwater infiltration. The compromise option, above-grade formed channels with removable perforated covers, gives a nearly flat surface while allowing periodic cleanout and inspection of the duct interior.

Moisture management extends beyond the vapor barrier to include perimeter drainage and wall-base detailing. Where the slab meets the steel wall panels, a continuous closed-cell foam sill seal prevents capillary wicking, and a sloped toe of concrete on the exterior face directs runoff away from the joint. Neglecting this detail is one of the most common causes of spoilage rings along the base of flat-storage buildings, where the bottom six inches of grain absorbs enough moisture to support mold growth within weeks of filling.

Expansion planning is where long-term value is either built in or foreclosed. Leaving space for additional bins, wet-holding tanks, and dryer capacity on the initial site plan costs nothing during design but can save hundreds of thousands of dollars in rework later. Foundations, utility trenches, and conveyor alignments should all be designed with a phase-two footprint in mind, even if the second phase is five or ten years away. A common strategy is to pour a conveyor tunnel that extends 50 feet beyond the initial building endwall so that a future extension can tie in without demolishing the existing wall.

Structural expandability depends on the framing system. Pre-engineered steel buildings with bolt-up rigid frames can be extended in bay increments by removing an endwall and adding new frame lines, a process that takes days rather than weeks and can often be completed between harvest seasons. This modular growth path is one of the strongest arguments for choosing a steel-framed warehouse-style building as the core of a grain storage complex. By contrast, concrete-walled or wood-post buildings are difficult and expensive to extend because their structural systems do not unbolt cleanly at the endwall.

Conveying capacity is the most frequently under-designed element in expansion scenarios. An operation that starts with 30,000 bushels of storage and a 3,000-bushel-per-hour leg may triple its storage within a decade, at which point the original leg becomes a crippling bottleneck during receiving. Specifying a conveyor system rated for the projected build-out capacity, even if the initial storage volume does not warrant it, is almost always cheaper than replacing the entire leg and boot pit later. The same logic applies to electrical service: installing conduit and switchgear capacity for the full build-out during the initial construction phase avoids tearing up concrete and re-trenching when the expansion arrives.

Grain storage construction costs vary widely depending on region, building type, and level of mechanical outfitting, but broad benchmarks help frame the conversation. A basic flat-storage steel building without aeration or concrete work typically runs between $8 and $14 per square foot for the shell, while a fully outfitted grain storage facility with aeration ducts, temperature monitoring, and a concrete floor can reach $25 to $40 per square foot depending on local labor rates and site conditions. Understanding steel building cost factors is essential for realistic budgeting because steel prices, erection labor availability, and freight costs can shift the total by 20 percent or more between the time a quote is issued and the time the building ships.

Market trends in 2025 and 2026 reflect a global grain industry grappling with supply-chain disruptions, tariff uncertainty, and a sustained push toward sustainability. World Grain reported in its 2024 project survey that energy efficiency, greenhouse gas reduction, and dust control have become top priorities for new storage and handling facilities, exemplified by projects like Lantmannen’s $48 million grain terminal in Sweden featuring 21 silos and state-of-the-art environmental controls. The 2025 follow-up survey from World Grain confirmed that the trend toward larger storage bins continues to drive demand for conveying systems rated at 1,000 metric tons per hour or more, and that ventilation and fumigation features are increasingly requested as part of new-build specifications rather than aftermarket additions.

For operators weighing bin storage against flat storage from a cost perspective, the calculation should include not just the per-bushel construction cost but also the total cost of ownership over 25 years, factoring in maintenance, insurance, commodity flexibility, and resale value of the structure. Steel flat-storage buildings generally hold their value better than bins of equivalent age because the building envelope can be repurposed for non-grain uses if the operation changes, whereas a corrugated steel bin has limited alternative utility. Financing options including USDA Farm Storage Facility Loans, which currently offer terms up to 12 years at competitive rates, can significantly reduce the out-of-pocket burden of a properly engineered grain storage building project.

Q: What is the most common aeration rate for grain storage buildings?

A: The most common aeration rate for conditioning and cooling grain in storage is one-tenth of a cubic foot per minute per bushel. Maintenance aeration, which simply moves enough air to equalize temperatures without significantly drying the grain, can use rates as low as one-twentieth CFM per bushel. Higher rates speed cooling cycles but require larger fans and more electrical capacity, so the optimal rate depends on grain type, storage duration, and local climate.

Q: How does flat storage compare to bin storage for grain?

A: Flat-storage buildings offer greater commodity flexibility because different grains can be stored in segregated piles within the same structure and loaded or unloaded with standard front-end equipment. Bins are more efficient for single-commodity, long-term storage because gravity unloading reduces labor, and the cylindrical shape handles lateral grain pressure without supplemental bracing. The best choice depends on how many commodities you handle and whether you need multi-use space during off-seasons.

Q: What size exhaust vents does a grain storage building need?

A: Purdue Extension recommends a minimum of one square foot of exhaust vent area for every 1,000 cubic feet per minute of fan capacity. Under-sizing vents creates back-pressure that reduces effective airflow and can damage roof panels. Ridge vents, gable-end louvers, and eave soffit vents can all contribute to the total exhaust area, but the combined opening must meet or exceed the one-square-foot-per-1,000-CFM threshold.

Q: Can a steel building be extended after initial construction?

A: Yes. Pre-engineered steel buildings with bolt-up rigid frames are designed for modular expansion. The endwall is removed, new frame lines and purlins are bolted to the existing structure, and a new endwall is erected at the extended length. This process typically takes days rather than weeks and can often be scheduled between harvest seasons, making steel frames the most expansion-friendly structural system for grain storage.

Q: What floor thickness is recommended for grain storage buildings?

A: A six-inch reinforced concrete slab is the industry standard for flat-storage grain buildings. The slab should be poured over a well-compacted granular base with a 10-mil polyethylene vapor barrier to block ground moisture. Control joints should be saw-cut at 12-to-15-foot intervals, and joint sealant must remain flexible to accommodate thermal movement without opening gaps that admit moisture from below.

Q: How much does a grain storage building cost per square foot?

A: A basic steel shell without interior outfitting typically costs between $8 and $14 per square foot, while a fully equipped grain storage building with aeration ducts, a concrete floor, and temperature monitoring can range from $25 to $40 per square foot. Actual costs depend on steel pricing at the time of order, local labor rates, site preparation requirements, and the level of mechanical systems included in the project scope.

Q: Why is positive-pressure ventilation preferred for flat grain storage?

A: Positive-pressure systems push conditioned air up through the grain mass from ducts beneath the pile, which prevents ambient humidity and precipitation from being drawn into the building through exhaust openings. Negative-pressure designs, which pull air downward, can introduce rain, snow, and unconditioned air directly onto the grain surface. Positive pressure also creates a slight overpressure inside the building that discourages insect migration through cracks and seams.
