All Metal Building Systems: A Comparative Guide to Structural Framing Options

Choosing among all metal building systems is one of the most consequential decisions a project owner will make. The framing method you select influences everything from upfront shell cost and construction speed to clear-span performance, future expansion potential, and long-term durability. Five distinct structural approaches dominate the commercial and industrial steel market today: pre-engineered metal buildings, cold-formed steel framing, tube steel, conventional structural steel, and hybrid systems that blend elements of two or more methods. Each one carries trade-offs, and no single system is the right answer for every project.

Understanding those trade-offs at the engineering level gives owners, developers, and general contractors the information they need to match the right system to the right application. A warehouse developer weighing clear-span requirements against foundation costs faces a fundamentally different calculation than a hospitality developer planning a four-story hotel with repetitive floor plates. This guide walks through each of the five major system types, compares them on the metrics that matter most, and explains how to align your selection with your steel building design goals.

Table of Contents

Intro

PEMB: The Efficient All-Arounder

CFS: The Light-Gauge Specialist

Tube Steel: The Practical Custom Frame

Structural Steel: The Custom-Performance Option

Hybrid: The Strategic Blend

Best Fit by Project Type

Code Compliance and Engineering Considerations

Conclusion

Frequently Asked Questions

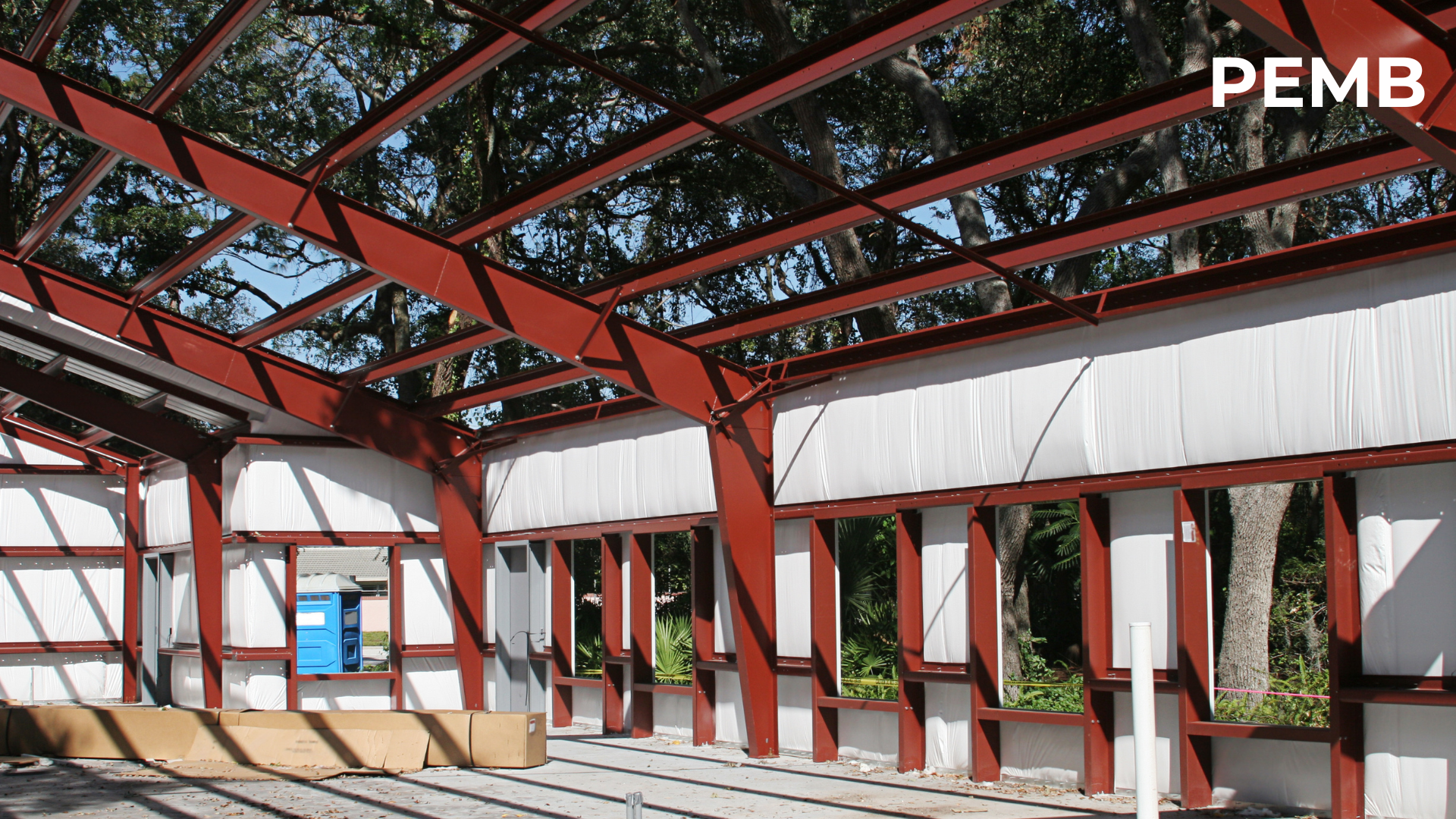

Pre-engineered metal buildings remain the most widely used all-metal building systems in single-story commercial and industrial construction, and for good reason. A PEMB uses factory-designed rigid frame connections between tapered columns and rafters to create a self-supporting structural skeleton that can span wide distances without interior columns. The defining feature is the fixed moment connection at the knee joint where the column meets the rafter, which transfers both vertical gravity loads and lateral wind or seismic forces through bending rather than relying on diagonal bracing alone. Rigid frames are among the most widely used structural systems in commercial and industrial construction because they efficiently resist both gravity and lateral loads while allowing for large, open interior spaces.

PEMBs are best suited for warehouses, industrial facilities, retail boxes, gymnasiums, flex space, aviation hangars, and low-rise commercial buildings where clear-span capability and fast erection matter most. From a cost perspective, PEMBs occupy the most economical position among standard low-rise shell systems. Factory fabrication keeps labor costs predictable, and the tapered member design uses steel only where bending moments demand it, reducing tonnage compared to straight-column alternatives. Erection timelines are strong as well, with a typical 60-by-100-foot rigid frame primary steel package going up in three to five days assuming foundations are ready. That speed advantage compounds on larger projects, directly reducing overall steel building cost.

PEMBs also handle expansion well because endwalls are typically non-load-bearing, allowing an owner to remove an endwall and bolt additional frame lines onto the existing structure without reworking the primary framing. Clear-span capability is excellent, with single spans reaching 200 feet or more in standard configurations. Height and load capacity are strong for taller eave heights and heavier demands, though extremely heavy crane loads may push designers toward supplemental structural steel columns. Design flexibility is good but more standardized than conventional steel, and energy envelope performance is solid with upgrades for higher-performing insulation systems. SteelCo Buildings supplies PEMB systems and can walk owners through the full range of rigid frame options for warehouse buildings and industrial applications.

Cold-formed steel framing is manufactured by rolling or pressing thin sheets of steel into C-shaped studs, tracks, and joists at room temperature, without the heating process used to create hot-rolled structural shapes. The resulting members are lightweight, dimensionally precise, and resistant to the warping, shrinking, and insect damage that affect wood framing. CFS has gained significant market share in mid-rise residential, hospitality, and mixed-use construction, and its use in low-rise commercial applications continues to expand as designers become more comfortable with the system’s load path engineering. SteelCo’s analysis of PEMBs versus cold-formed steel buildings explains that CFS excels in structures with repetitive, closely spaced framing where spans are moderate and interior partitions provide lateral bracing.

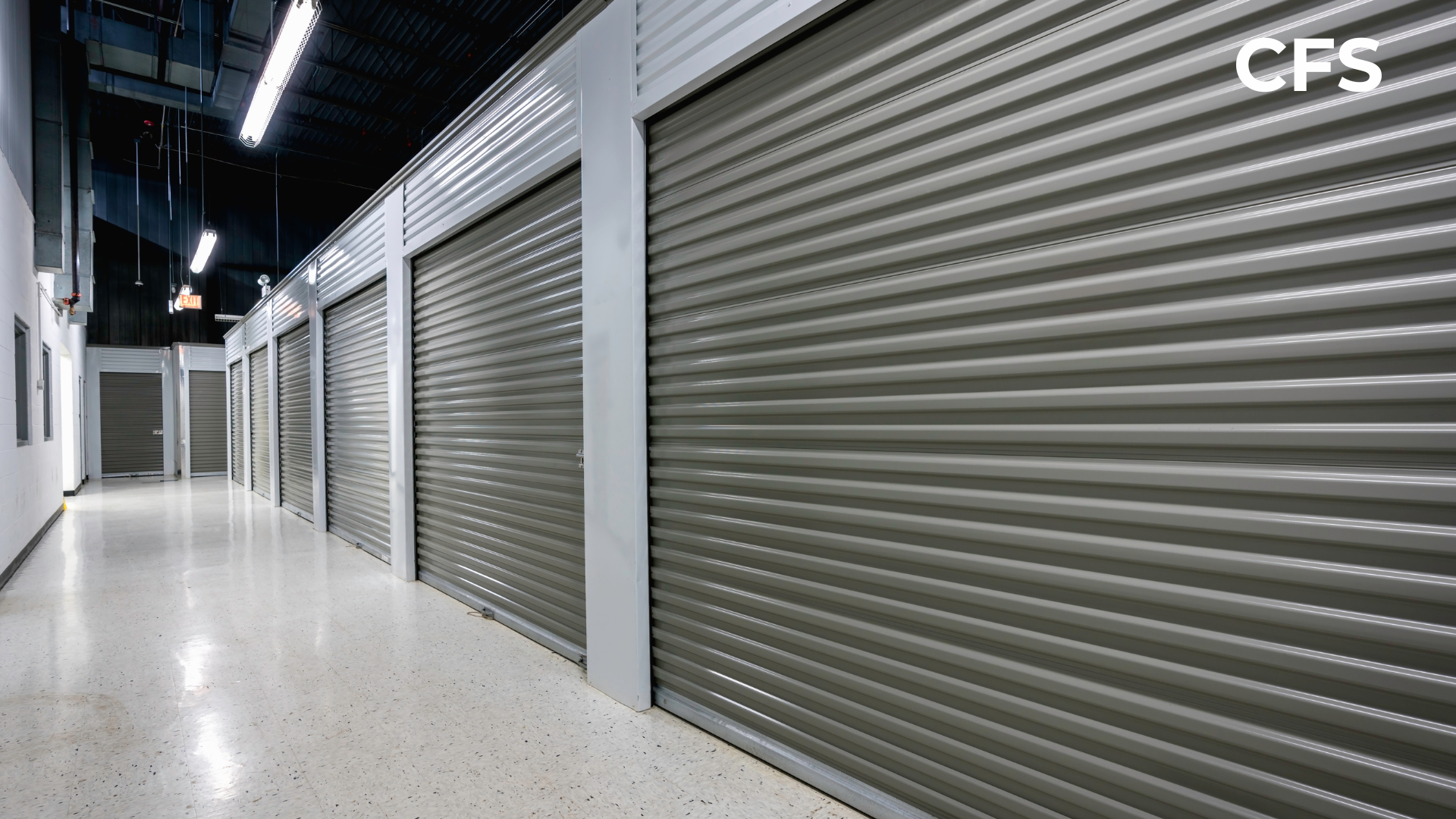

CFS is best for self-storage facilities, small or light commercial projects, infill construction, and partition-heavy layouts like hotel rooms, apartment units, and medical office suites. Total cost is competitive for smaller and lighter-load projects where its lighter weight reduces foundation demands. Clear-span capability is more limited than PEMB, generally topping out around 40 feet without supplemental support, and height and load capacity are similarly constrained to lighter applications and shorter heights. Where CFS shines is in design flexibility for modular and repetitive layouts, and in its good wall assembly flexibility for energy envelope performance.

From a sustainability standpoint, CFS members are manufactured from sheet steel that typically contains 25 to 30 percent recycled content, and the members are fully recyclable at end of life. Scrap rates on CFS projects tend to be under two percent because members are cut to length in the factory using computerized roll-forming lines. SteelCo Buildings also supplies CFS systems for projects where the light-gauge approach is the right structural fit, providing site access advantages and lighter handling that smaller or tighter-lot projects demand.

Tube steel framing uses hollow structural sections, either square or rectangular, to create building frames that offer a clean aesthetic and good torsional resistance compared to open-section shapes like I-beams. Tube steel buildings occupy a middle ground between the highly engineered efficiency of PEMBs and the full custom flexibility of conventional structural steel, making them popular for smaller commercial buildings, canopies, carports, simple storage structures, and custom-framed projects that need more flexibility than a light-gauge CFS system can deliver but do not require the strength, scale, or complexity of a full PEMB or structural steel package.

Total cost for tube steel buildings is often higher than PEMB for comparable box-shaped buildings because the members are not tapered to match bending moment demand, which means more steel weight per square foot. However, tube steel framing allows for simpler custom shapes and is readily available from local steel suppliers without the lead times associated with pre-engineered packages. Clear-span capability is moderate, typically suitable for spans under 60 to 80 feet depending on loading, and height and load capacity is moderate as well. Design flexibility is good for simpler custom shapes and non-standard footprints, and energy envelope performance depends on the wall and roof cladding system selected. The Build Using Steel resource on strength and resilience highlights how steel’s inherent material properties give tube steel members favorable strength-to-weight characteristics even in hollow section form.

Conventional structural steel framing uses hot-rolled wide-flange beams, columns, and plate girders engineered and fabricated to project-specific drawings by an independent structural engineer. This system is the go-to choice for projects with complex geometry, heavier loads, multi-story demands, or architectural requirements that go beyond what a standardized PEMB or CFS system can solve efficiently. Manufacturing plants with heavy overhead cranes, multi-story office buildings with unique floor plate shapes, and architecturally distinctive commercial structures all fall squarely in the domain of conventional structural steel.

Total cost for structural steel is typically the highest among the five system types, driven by custom engineering, project-specific fabrication, and longer erection timelines. Clear-span capability is excellent, and height and load capacity is also excellent, with the ability to support heavy concentrated loads, tall multi-story configurations, and demanding seismic or wind requirements. Design flexibility is the strongest of any system type because every connection, member size, and geometry is engineered from scratch rather than selected from a catalog. Energy envelope performance is excellent because the system accommodates any wall and roof assembly, from insulated metal panels to curtain walls to masonry veneers. The AISC’s sustainability resources document that U.S. structural steel contains an average of 93 percent recycled content and is recycled at a rate exceeding 98 percent at end of life, making it one of the most circular building material choices available.

Hybrid metal building systems combine elements from two or more framing approaches within a single structure, blending the strengths of each system to meet complex programmatic or architectural requirements. A common hybrid configuration pairs a pre-engineered rigid frame roof with conventional hot-rolled steel columns and beams at the perimeter, allowing the building to achieve the clear-span efficiency of a PEMB while supporting masonry, precast, or curtain wall cladding systems that standard metal building panel systems cannot easily accommodate. Another frequent hybrid approach uses rigid frames for the main production bay of an industrial facility and CFS framing for attached office or mezzanine areas. SteelCo’s guide comparing hybrid steel buildings and PEMBs details how this strategic blending reduces total project cost by applying pre-engineered components where they perform best while using conventional steel or CFS where demands require it.

Hybrid systems are best for projects that want PEMB efficiency and speed but also need selective upgrades for crane support, mezzanines, taller clearances, heavier loads, or enhanced exterior design. Total cost falls above PEMB but below full structural steel in most configurations, varying by how much conventional steel is integrated. Clear-span capability and height and load capacity are both excellent when structural steel is strategically reinforced in the zones that need it. Design flexibility is very good to excellent, and energy envelope performance is strong because the system can incorporate different insulation and cladding assemblies across different building zones. Expansion friendliness is also strong, as hybrid buildings can be designed with future growth in mind from the outset.

Every building system has trade-offs, and the final selection should reflect your project’s size, occupancy, code requirements, structural loads, site conditions, timeline, insulation goals, and long-term plans. The best option is not always the cheapest upfront option. A thorough understanding of the difference between PEB and conventional steel structures helps decision-makers weigh upfront fabrication savings against the long-term flexibility of conventional framing.

Warehouse and distribution projects are typically best served by a PEMB or hybrid system, where clear-span efficiency and fast erection drive the highest return. Self-storage facilities align well with CFS or hybrid framing, leveraging the modularity and lighter handling of cold-formed steel for repetitive unit layouts. Simple carports, canopies, and small storage structures can be framed effectively with PEMB, tube steel, or CFS depending on span and site access. Manufacturing facilities with heavy overhead crane loads or specialized equipment benefit from PEMB, hybrid, or structural steel, with the choice depending on crane capacity and bay spacing requirements.

Retail, flex, and office-showroom projects frequently call for PEMB, hybrid, or structural steel, especially when facade design and tenant build-out flexibility are priorities. Architectural, multi-story, and high-complexity commercial building projects with demanding aesthetic or structural programs are best served by structural steel or hybrid systems, which provide the engineering freedom to accommodate unique geometries, heavier floor loads, and premium exterior finishes. The MBMA’s 2024 Metal Building Systems Manual provides the industry’s definitive reference for designing, manufacturing, and erecting metal building systems in compliance with current codes, and it is a valuable resource for any owner comparing system types.

Every all metal building system must comply with the International Building Code, ASCE 7 load standards, and any locally adopted amendments, but the path to compliance differs by system type. PEMBs are designed, stamped, and sealed by the manufacturer’s engineering staff, delivering a structurally complete package. CFS systems follow AISI standards and are typically engineered by the manufacturer or a specialty engineer. Tube steel and conventional structural steel are engineered by an independent structural engineer of record and fabricated to custom drawings, a workflow that offers more design flexibility but extends the preconstruction timeline.

Energy code compliance has become an increasingly important consideration as jurisdictions adopt more stringent versions of the International Energy Conservation Code. Metal buildings face unique thermal bridging challenges because steel framing conducts heat far more readily than wood, and addressing those thermal bridges requires careful detailing of insulation systems, thermal breaks, and vapor barriers. The MBMA Energy Code Compliance Guide walks building owners and designers through prescriptive and performance paths for meeting current energy code requirements, covering everything from standing-seam roof insulation to insulated metal panel wall assemblies. Owners evaluating how long steel buildings last should also factor in how each system’s detailing affects moisture management and long-term envelope integrity.

Q: What are the five main types of all metal building systems?

A: The five primary types are pre-engineered metal buildings (PEMB), cold-formed steel (CFS), tube steel, conventional structural steel, and hybrid systems that combine elements from two or more categories. Each type is engineered for different span ranges, load conditions, cost targets, and occupancy requirements.

Q: What is a PEMB and when is it the best choice?

A: A pre-engineered metal building uses factory-designed rigid frame connections between tapered columns and rafters to create a self-supporting frame that can span up to 200 feet or more without interior columns. It is the best choice for single-story buildings that need wide-open interior space, such as warehouses, manufacturing plants, aircraft hangars, gymnasiums, and agricultural storage facilities.

Q: How does tube steel compare to a PEMB?

A: Tube steel framing uses hollow structural sections to create custom building frames and is best for smaller commercial projects, canopies, carports, and structures that need more design flexibility than CFS but do not require the strength or scale of a full PEMB or structural steel package. PEMBs are generally more cost-efficient for larger clear-span buildings because their tapered members optimize steel usage.

Q: When should I choose structural steel over a PEMB?

A: Structural steel is the better choice when your project involves complex geometry, heavier loads, multi-story construction, heavy crane requirements, or architectural demands that exceed what a standardized PEMB system can deliver. The trade-off is higher cost and longer preconstruction timelines due to custom engineering and fabrication.

Q: What is a hybrid metal building system?

A: A hybrid system combines two or more framing approaches within a single structure. A common example is a building that uses pre-engineered rigid frame rafters for the roof and conventional structural steel columns to support masonry or precast wall panels. Hybrids let owners optimize cost and performance across different zones of the building.

Q: Which metal building system is best for self-storage?

A: Self-storage facilities are typically best served by CFS or hybrid framing. CFS leverages modularity and lighter handling for repetitive unit layouts, while a hybrid approach can combine CFS interior partitions with a PEMB roof system for wider clear spans over drive aisles and corridors.

Q: Does SteelCo Buildings supply all five system types?

A: SteelCo Buildings is a supplier of PEMB and CFS systems and can assist with hybrid configurations that combine pre-engineered and cold-formed components. For projects that require full conventional structural steel or tube steel framing, SteelCo can help owners evaluate whether a PEMB, CFS, or hybrid approach may offer a more efficient solution for their specific requirements.
